Differential Seals - RH, Front Wheel Drive (FWD): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The use of any transmission fluid other than what is recommended for this transaxle will cause transaxle damage.
  1. Remove the RH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
    2. NOTE: Be careful not to damage the case while removing the seal.

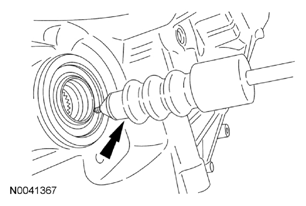

    Fig 1: Removing Differential Fluid Seal Using Dent Puller
    G07785966Courtesy of FORD MOTOR CO.
  2. Using a suitable dent puller, remove the differential fluid seal.
