Cylinder Head - RH

All vehicles

1. Remove the RH camshafts. For additional information, refer to CAMSHAFT  .
2. If equipped, remove the heat shield and disconnect the block heater electrical connector.
   • Remove the block heater wiring harness from the engine.
     Fig 1: Location of Block Heater Electrical Connector And Heat Shield

     Courtesy of FORD MOTOR CO.
3. Disconnect the RH Heated Oxygen Sensor (HO2S) electrical connector.

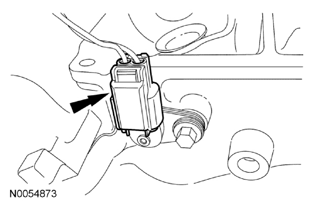

   Fig 2: Location of RH Heated Oxygen Sensor (HO2S) Electrical Connector

   Courtesy of FORD MOTOR CO.
4. Disconnect the RH Camshaft Position (CMP) sensor electrical connector.
   Fig 3: Location of RH Camshaft Position (CMP) Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
5. Remove the bolt and the Power Steering Pressure (PSP) tube and bracket assembly.
   Fig 4: Location of Power Steering Pressure Tube Bracket Bolt

   Courtesy of FORD MOTOR CO.
6. Disconnect the 6 fuel injector electrical connectors (3 shown in illustration).

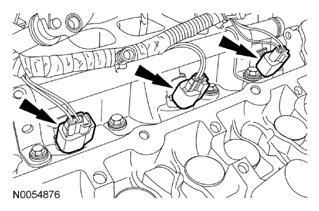

   Fig 5: Location of Fuel Injector Electrical Connectors

   Courtesy of FORD MOTOR CO.
7. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

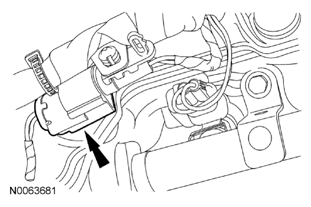

   Fig 6: Location of Cylinder Head Temperature (CHT) Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.
8. Disconnect the LH Catalyst Monitor Sensor (CMS) sensor electrical connector.

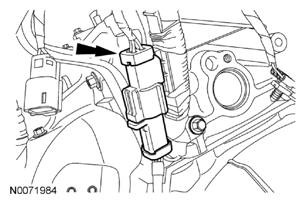

   Fig 7: Location of LH Catalyst Monitor Sensor (CMS) Electrical Connector

   Courtesy of FORD MOTOR CO.
9. Remove the 2 LH catalytic converter bracket bolts.
   Fig 8: Location of LH Catalytic Converter Bracket Bolts

   Courtesy of FORD MOTOR CO.
10. Remove the 4 nuts (3 shown in illustration) and the LH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 9: Location of LH Catalytic Converter Nuts

      Courtesy of FORD MOTOR CO.
11. Remove the LH cylinder block drain plug.
    • Allow coolant to drain from the cylinder block.
      Fig 10: Location of Cylinder Block Drain Plug

      Courtesy of FORD MOTOR CO.

    All-Wheel Drive (AWD) vehicles

12. Remove the 2 RH catalytic converter bracket bolts.
    Fig 11: Location of Catalytic Converter-To-Bracket Bolts

    Courtesy of FORD MOTOR CO.

    All vehicles

13. Remove the 4 nuts and the RH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 12: Location of Nuts And Gasket

      Courtesy of FORD MOTOR CO.
14. Remove the RH cylinder block drain plug or, if equipped, the block heater.
    • Allow coolant to drain from the cylinder block.
      Fig 13: Location of RH Cylinder Block Drain Plug And Block Heater

      Courtesy of FORD MOTOR CO.
15. Remove the 3 bolts and the RH exhaust manifold heat shield.
    Fig 14: Location of RH Exhaust Manifold Heat Shield Bolts

    Courtesy of FORD MOTOR CO.
16. Remove the 6 nuts and the RH exhaust manifold.
    • Discard the nuts and exhaust manifold gaskets.
      Fig 15: Location of Exhaust Manifold Gaskets Nuts

      Courtesy of FORD MOTOR CO.
17. Clean and inspect the RH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
18. Remove and discard the 6 RH exhaust manifold studs.
    Fig 16: Location of RH Exhaust Manifold Studs

    Courtesy of FORD MOTOR CO.
19. Remove the bolt and the RH timing chain guide.
    Fig 17: Location of Bolt And RH Timing Chain Guide

    Courtesy of FORD MOTOR CO.
20. Remove the 2 bolts and the RH secondary timing chain tensioner.
    Fig 18: Location of RH Secondary Timing Chain Tensioner And Bolts

    Courtesy of FORD MOTOR CO.
21. Remove the 2 bolts and the engine lifting eye.
    Fig 19: Location of Engine Lifting Eye And Bolts

    Courtesy of FORD MOTOR CO.
NOTE: Index-mark the location of the bracket on the cylinder head for installation.
Fig 20: Location of Upper Intake Manifold Support Bracket And Bolt
Courtesy of FORD MOTOR CO.
22. Remove the bolt and the upper intake manifold support bracket.
23. Remove the bolt and the RH CMP sensor.

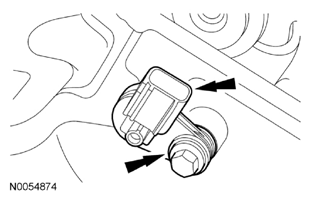

    Fig 21: Location of RH CMP Sensor And Bolt

    Courtesy of FORD MOTOR CO.
24. Remove the 4 bolts and the fuel rail and injectors as an assembly.
    Fig 22: Location of Fuel Rail And Injectors Assembly Bolts

    Courtesy of FORD MOTOR CO.
25. Disconnect the coolant bypass hose from the thermostat housing.
    Fig 23: Location of Coolant Bypass Hose

    Courtesy of FORD MOTOR CO.
26. Remove the 2 thermostat housing-to-lower intake manifold bolts.
    • Remove the thermostat housing and discard the gasket and O-ring seal.
      Fig 24: Location of Thermostat Housing And Discard Gasket And O-Ring Seal

      Courtesy of FORD MOTOR CO.
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
27. Remove the 10 bolts and the lower intake manifold.
    • Discard the gaskets.
      Fig 25: Location of Lower Intake Manifold Bolts

      Courtesy of FORD MOTOR CO.
28. Disconnect and remove the CHT sensor jumper harness.
    Fig 26: Location of CHT Sensor Jumper Harness

    Courtesy of FORD MOTOR CO.
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
Fig 27: Location of Valve Tappets
Courtesy of FORD MOTOR CO.
29. Remove the valve tappets from the cylinder head.
30. Remove and discard the M6 bolt.
    Fig 28: Location of M6 Bolt

    Courtesy of FORD MOTOR CO.
NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE: Aluminum surfaces are soft and may be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.
31. Remove and discard the 8 bolts from the cylinder head.
    • Remove the cylinder head.
    • Discard the cylinder head gasket.

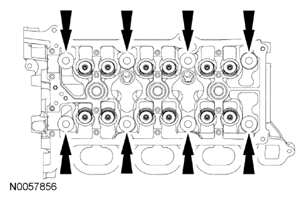

      Fig 29: Location of Cylinder Head Bolts

      Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
32. Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.
    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
33. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
