Valve Cover - RH (View 3 of 3): Notes
WARNING: This page is about a different variant/trim than selected.

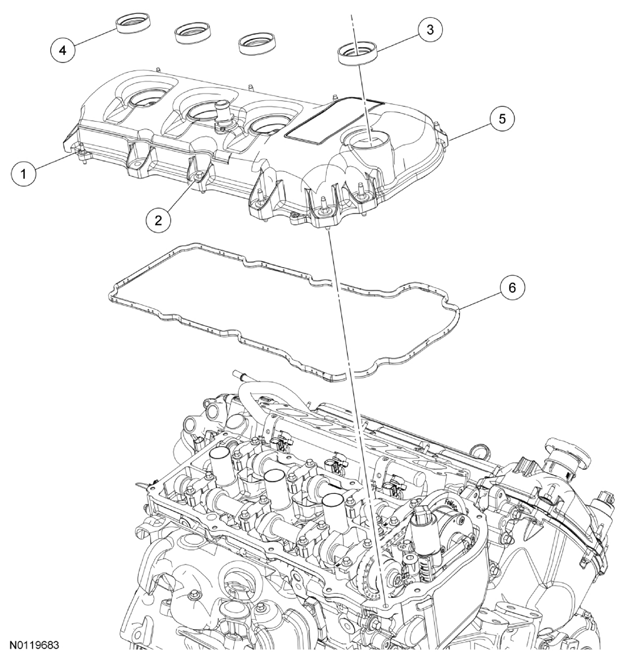

Fig 1: Identifying Valve Cover Stud Bolt, Valve Cover Bolt And Variable Camshaft Timing Solenoid Seal
| Item | Part Number | Description |
|---|---|---|
| 1 | 6C519 | Valve cover stud bolt (8 required) |
| 2 | 6C520 | Valve cover bolt |
| 3 | 6C535 | Variable Camshaft Timing (VCT) solenoid seal |
| 4 | 6C535 | Spark plug tube seal (3 required) |
| 5 | 6582 | RH valve cover |
| 6 | 6584 | RH valve cover gasket |
