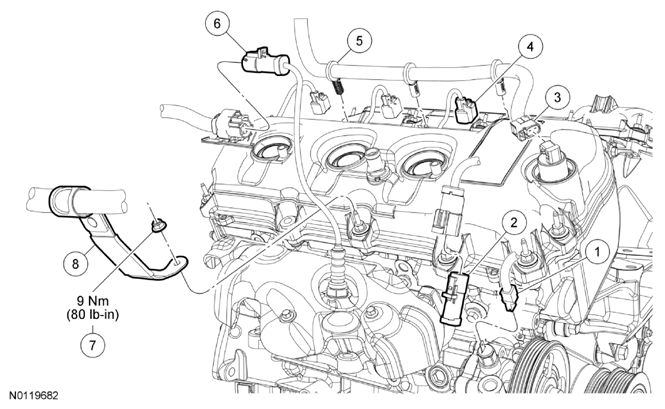

Valve Cover - RH (View 2 of 3)
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power Steering Pressure (PSP) switch electrical connector (part of 12C508) |
| 2 | - | RH Catalyst Monitor Sensor (CMS) electrical connector (part of 12C508) |
| 3 | - | RH Variable Camshaft Timing (VCT) electrical connector (part of 12C508) |
| 4 | - | RH fuel injector electrical connector (3 required) (part of 12C508) |
| 5 | W700497 | Engine control wiring harness retainer (part of 12C508) |
| 6 | - | RH Heated Oxygen Sensor (HO2S) electrical connector (part of 12C508) |
| 7 | W520100 | PSP hose bracket nut |
| 8 | 3A719 | PSP hose bracket |
