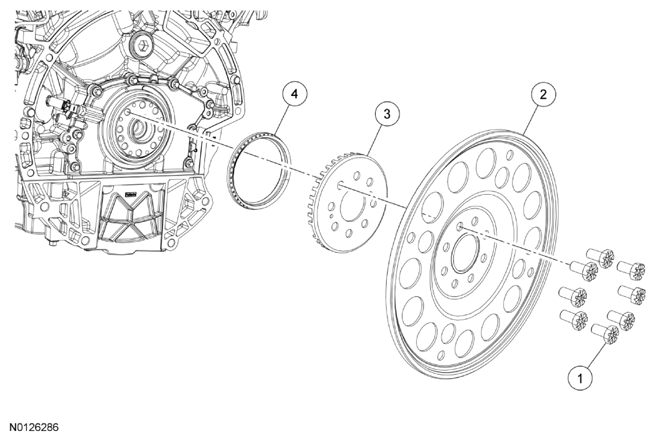

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W701559 |
Flexplate bolt (8 required) |
| 2 |
6375 |
Flexplate |
| 3 |
12A227 |
Crankshaft sensor ring |
| 4 |
6701 |
Crankshaft rear seal |
- For additional information, refer to the procedures in this information.
