Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. If equipped, remove the 6 screws and the underbody shield.

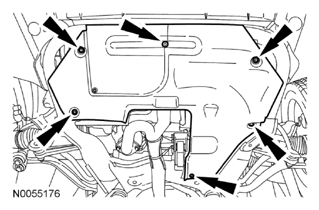

    Fig 1: Location of Underbody Cover Shield Screws
    G08020680Courtesy of FORD MOTOR CO.
  3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
  4. Remove the EOP switch.
    • To install, tighten to 14 Nm (124 lb-in) plus an additional 180 degrees.
  5. To install, reverse the removal procedure.
    • Apply thread sealant with PTFE to the EOP switch threads prior to installation.
