Engine Mount (View 1 of 3)

WARNING: This page is about a different variant/trim than selected.

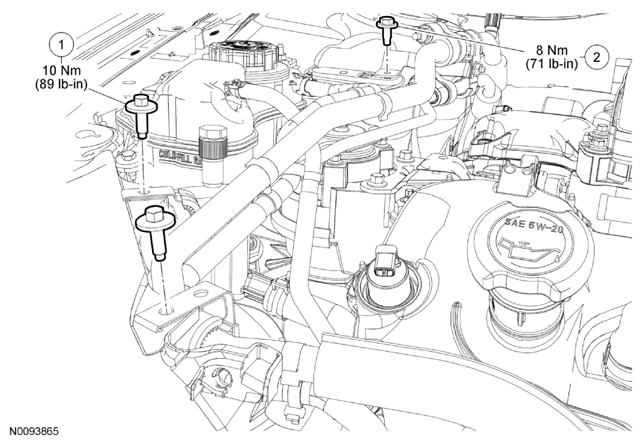

Fig 1: A/C Tube Retaining Clamp Bolt With Torque Specifications
G08020687Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W503924 A/C tube retaining clamp bolt (2 required)
2 W505422 A/C tube retaining clamp bolt
