Crankshaft Pulley: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Lubricate the crankshaft front seal inner lip with clean engine oil.
    2. NOTE: Lubricate the outside diameter sealing surfaces with clean engine oil.

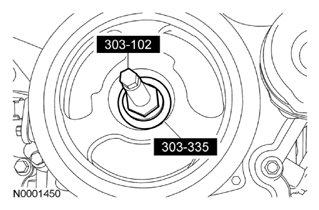

    Fig 1: Installing Crankshaft Pulley Using Crankshaft Vibration Damper Installer And Front Cover Oil Seal Installer
    G08020659Courtesy of FORD MOTOR CO.
  2. Using the Front Cover Oil Seal Installer and Crankshaft Vibration Damper Installer, install the crankshaft pulley.
  3. Using the Strap Wrench, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.

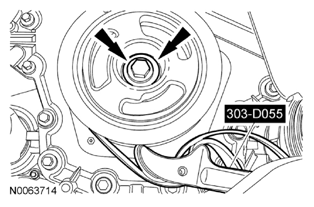

      Fig 2: Location of Crankshaft Pulley Washer And Bolt
      G08020660Courtesy of FORD MOTOR CO.
  4. Install the accessory drive belt and the power steering belt. For additional information, refer to ACCESSORY DRIVE - 3.5L .
  5. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
