Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY  .
  3. Using the Oil Seal Remover, remove and discard the crankshaft front seal.
    • Clean all sealing surfaces with metal surface prep.

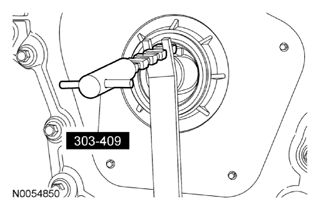

      Fig 1: Removing Crankshaft Front Seal Using Oil Seal Remover
      G08020664Courtesy of FORD MOTOR CO.
