Section 10 (Engine Mechanical - 3.5L)
>>
Description And Operation
>>
Engine
>>
Engine Identification
>>
Engine Cylinder Identification
Engine Cylinder Identification
WARNING:
This page is about a different variant/trim than selected.

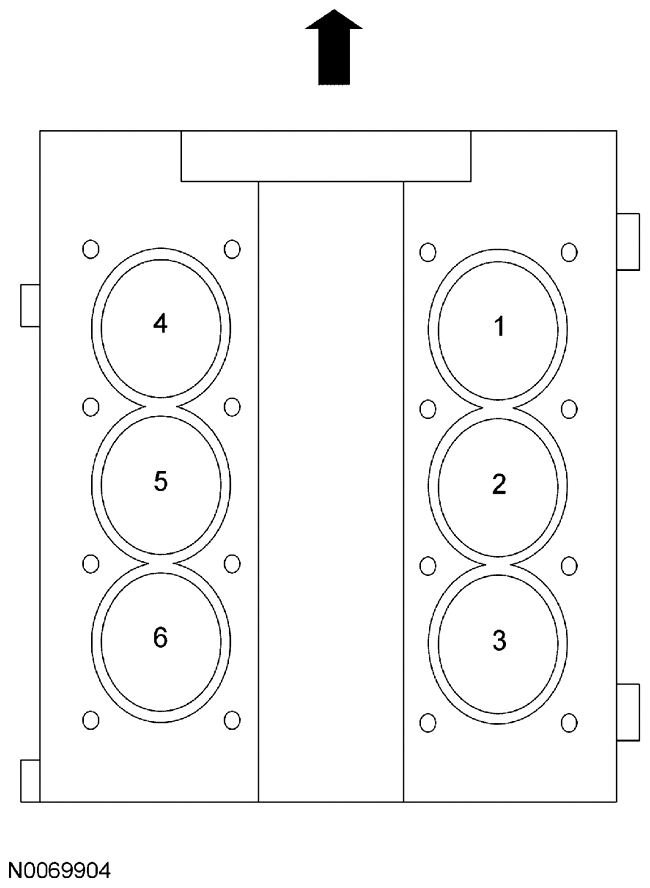

Fig 1: Identifying Engine Cylinder Identification
Courtesy of FORD MOTOR CO.
