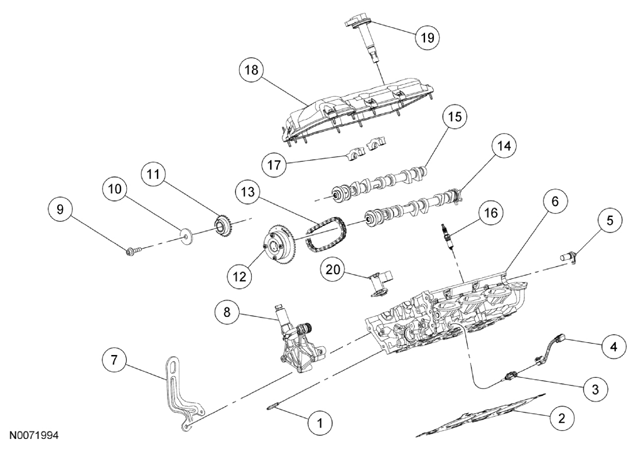

Engine Upper - RH Cylinder Head
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | W712244 | RH exhaust manifold stud (6 required) |
| 2 | 6051 | RH cylinder head gasket |
| 3 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 4 | 14A411 | CHT sensor jumper harness |
| 5 | 6B288 | Camshaft Position (CMP) sensor (2 required) |
| 6 | 6049 | RH cylinder head |
| 7 | 17A084 | Engine lift eye |
| 8 | 6C260 | RH Variable Camshaft Timing (VCT) housing |
| 9 | 6279 | RH camshaft bolt (2 required) |
| 10 | W710738 | RH exhaust camshaft sprocket washer |
| 11 | 6256 | RH exhaust camshaft sprocket |
| 12 | 6A257 | RH VCT assembly |
| 13 | 6268 | RH secondary timing chain |
| 14 | 6250 | RH intake camshaft |
| 15 | 6250 | RH exhaust camshaft |
| 16 | 12405 | Spark plug (6 required) |
| 17 | 6A258 | RH camshaft cap (8 required) |
| 18 | 6582 | RH valve cover |
| 19 | 12A375 | Coil-on-plug (6 required) |
| 20 | 6C270 | RH secondary timing chain tensioner |
