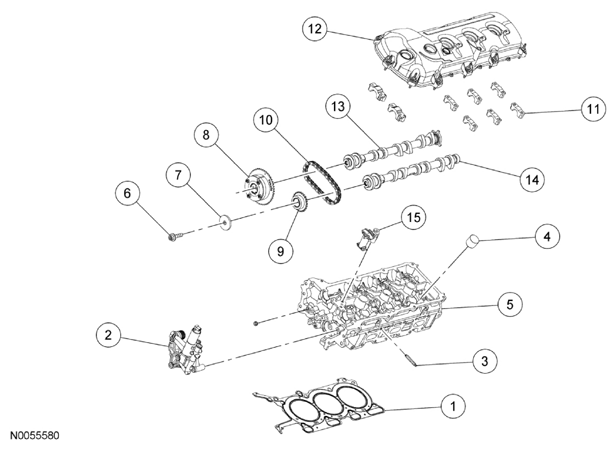

Engine Upper - LH Cylinder Head
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6051 | LH cylinder head gasket |
| 2 | 6C261 | LH Variable Camshaft Timing (VCT) housing |
| 3 | W712244 | LH exhaust manifold stud (6 required) |
| 4 | 6500 | Valve tappet (24 required) |
| 5 | 6049 | LH cylinder head |
| 6 | 6279 | LH camshaft bolt (2 required) |
| 7 | W710738 | LH exhaust camshaft sprocket washer |
| 8 | 6A257 | LH VCT assembly |
| 9 | 6256 | LH exhaust camshaft sprocket |
| 10 | 6268 | LH secondary timing chain |
| 11 | 6A258 | LH camshaft cap (8 required) |
| 12 | 6582 | LH valve cover |
| 13 | 6250 | LH intake camshaft |
| 14 | 6250 | LH exhaust camshaft |
| 15 | 6K254 | LH secondary timing chain tensioner |
