Fuel Injector
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

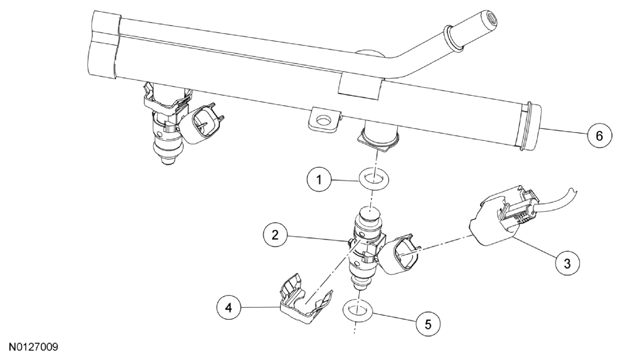

| Item | Part Number | Description |
|---|---|---|
| 1 | 9229 | Upper fuel injector O-ring seal (6 required) |
| 2 | 9F593 | Fuel injector (6 required) |
| 3 | - | Fuel injector electrical connector (part of 14B485) (6 required) |
| 4 | 9C995 | Fuel injector clip (6 required) |
| 5 | 9229 | Lower fuel injector seal (6 required) |
| 6 | 9F792 | Fuel rail |
- For additional information, refer to the appropriate procedures in this information.
