Cylinder-Head Mounted Knock Sensor (KS)

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

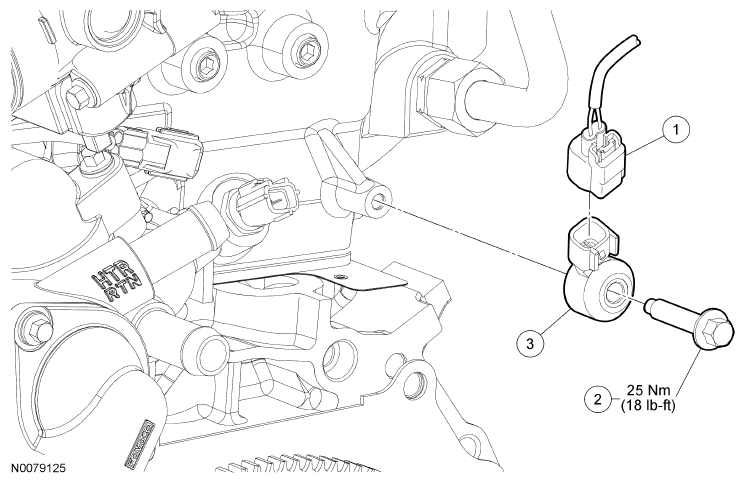

Fig 1: Cylinder Head-Mounted Knock Sensor Replacement Components With Torque Specifications
G06096784Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Knock Sensor (KS) electrical connector
2 W500310 KS bolt
3 12A699 KS
