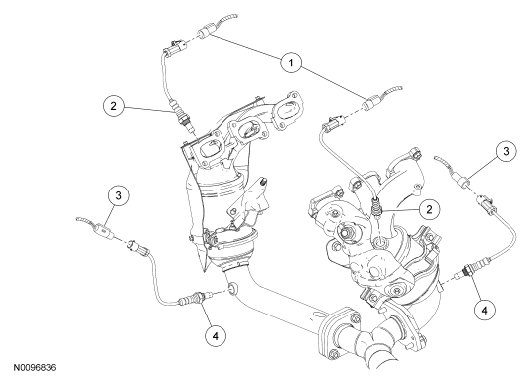

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Front Wheel Drive (FWD) shown in illustration, All-Wheel Drive (AWD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connectors |
| 2 | 9F472 | HO2S |
| 3 | 14A464 | Catalyst Monitor Sensor (CMS) electrical connectors |
| 4 | 9G444 | CMS |
- For additional information, refer to the appropriate procedures in this information.
