Crankshaft Position (CKP) Sensor: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

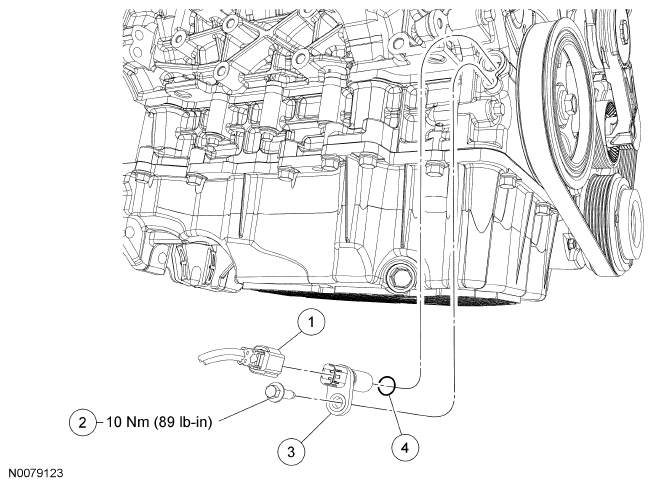

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Crankshaft Position (CKP) sensor electrical connector |
| 2 | W500214 | CKP sensor bolt |
| 3 | 6C315 | CKP sensor |
| 4 | - | CKP sensor O-ring seal |
