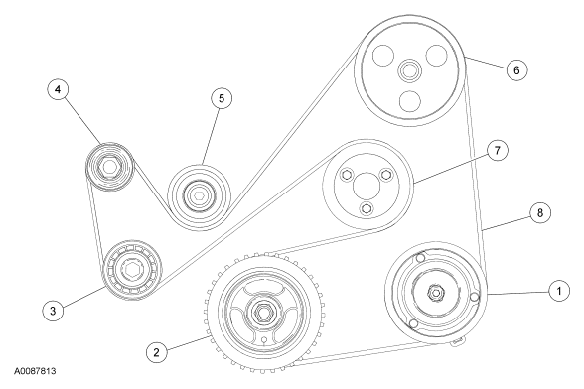

Accessory Drive Belt Routing: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
19D784 |
A/C compressor pulley |
| 2 |
6316 |
Crankshaft pulley |
| 3 |
6A228 |
Belt tensioner |
| 4 |
10300 |
Generator pulley |
| 5 |
8678 |
Idler pulley |
| 6 |
8678 |
Idler pulley |
| 7 |
8509 |
Coolant pump pulley |
| 8 |
8620 |
Accessory drive belt |
