Transaxle Support Insulator - Anti-Roll: Removal

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the screws and the underbody cover.

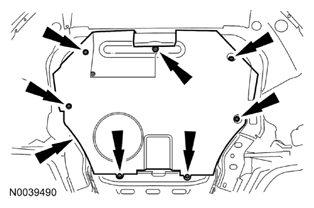

    Fig 1: Locating Underbody Cover And Screws
    G08023409Courtesy of FORD MOTOR CO.

    Vehicles equipped with a 3.0L engine

  3. Remove the Y-pipe. For additional information, refer to EXHAUST SYSTEM .

    All vehicles

  4. Remove the 2 bolts and remove the roll restrictor.

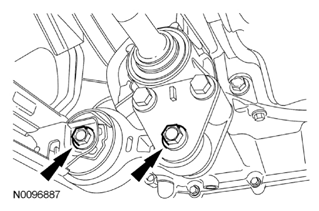

    Fig 2: Locating Roll Restrictor Bolts
    G08023410Courtesy of FORD MOTOR CO.
