Transaxle Support Insulator - Anti-Roll: Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

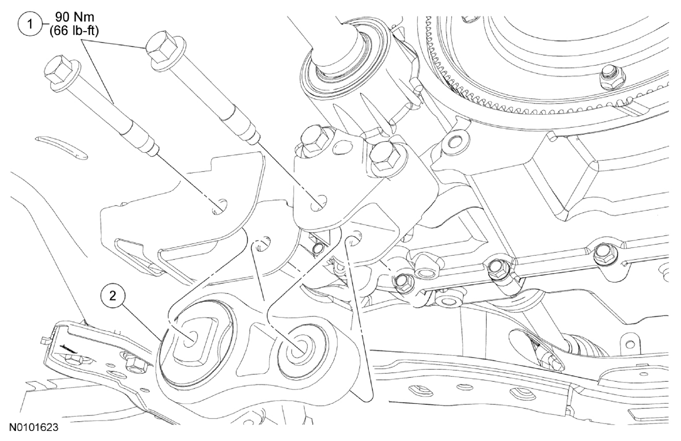

Fig 1: Roll Restrictor And Bolts With Fastener Tightening Torque Specifications Table
G08023408Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711575 Roll restrictor bolts
2 6P082 Roll restrictor
