Transaxle Support Insulator - Anti-Roll: Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Position the roll restrictor in place and install the bolts.
- Tighten to 90 Nm (66 lb-ft).

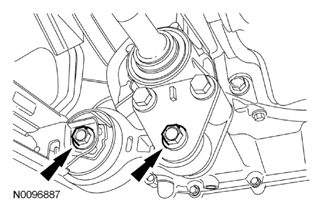

  Fig 1: Locating Roll Restrictor Bolts
  Courtesy of FORD MOTOR CO.
Vehicles equipped with a 3.0L engine
Install the Y-pipe. For additional information, refer to EXHAUST SYSTEM .
All vehicles
Install the underbody cover and the screws.

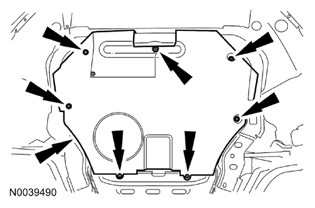

Fig 2: Locating Underbody Cover And Screws
Courtesy of FORD MOTOR CO.
