Transaxle Support Insulator - 3.0L: Removal

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the Air Cleaner (ACL) and the outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING - 3.0L (4V) .
  3. Remove the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Remove the 4 screws and position the LH fender splash shield aside.
    Fig 1: Locating LH Fender Splash Shield Screws
    G08023364Courtesy of FORD MOTOR CO.
  5. Remove the 6 pin-type retainers and the LH front structure-to-subframe splash shield.

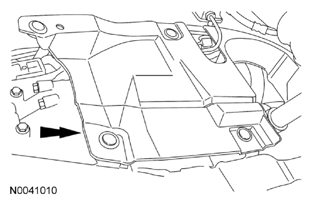

    Fig 2: Locating LH Front Structure-To-Subframe Splash Shield
    G08023365Courtesy of FORD MOTOR CO.
  6. Remove the lower 2 transaxle insulator-to-frame bolts.

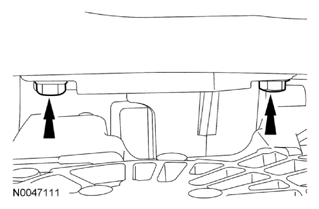

    Fig 3: Locating Transaxle Insulator-To-Frame Bolts (Lower Side)
    G08023366Courtesy of FORD MOTOR CO.
  7. Remove the cooling fan motor and shroud. For additional information, refer to ENGINE COOLING .
  8. Install the Engine Lifting Bracket and Universal Adapter Bracket "L" hook on the LH side of the engine.

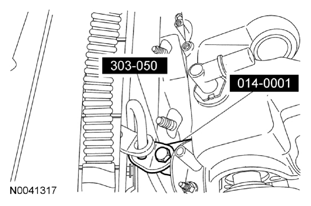

    Fig 4: Identifying Engine Lifting Bracket And Universal Adapter Bracket L Hook
    G08023367Courtesy of FORD MOTOR CO.
  9. Install the Engine Support Bar to support the engine.
    Fig 5: Identifying Engine Support Bar
    G08023368Courtesy of FORD MOTOR CO.
  10. Remove the transaxle support insulator through bolt.

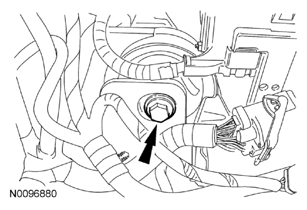

    Fig 6: Locating Transaxle Support Insulator Through Bolt
    G08023369Courtesy of FORD MOTOR CO.
  11. Remove the wiring harness retainer from the transaxle support insulator and position the wiring harness aside.

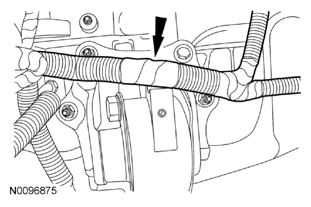

    Fig 7: Locating Transaxle Support Insulator
    G08023370Courtesy of FORD MOTOR CO.
  12. Disconnect the wiring harness retainer from the LH shock tower.

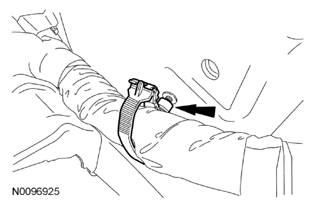

    Fig 8: Locating LH Shock Tower Wiring Harness Retainer
    G08023371Courtesy of FORD MOTOR CO.
  13. Remove the electrical connector bracket from the Battery Junction Box (BJB).

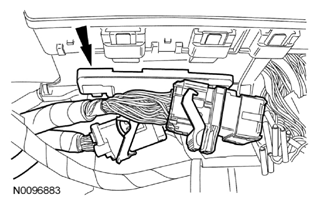

    Fig 9: Locating Battery Junction Box Electrical Connector Bracket
    G08023372Courtesy of FORD MOTOR CO.
  14. Remove the 2 bolts and the nut and position the BJB aside far enough to gain access to the top 2 transaxle support insulator bolts.

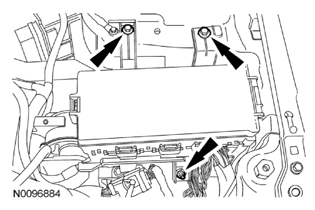

    Fig 10: Locating BJB Bolts And Nut
    G08023373Courtesy of FORD MOTOR CO.
  15. Remove the top 2 transaxle support insulator bolts and remove the transaxle support insulator.

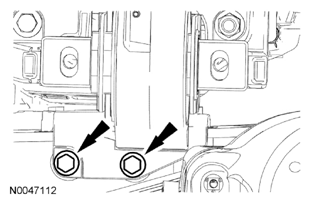

    Fig 11: Locating Transaxle Support Insulator Bolts
    G08023374Courtesy of FORD MOTOR CO.
