Transaxle Support Insulator - 3.0L: Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the rear transaxle support insulator bolts using a wire brush and apply new threadlock to the threads.
  2. Position the transaxle support insulator in place and install the upper 2 transaxle support insulator bolts.
    • Tighten to 62 Nm (46 lb-ft).

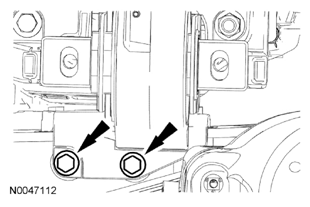

      Fig 1: Locating Transaxle Support Insulator Bolts
      G08023375Courtesy of FORD MOTOR CO.
  3. Install the lower 2 transaxle insulator-to-frame bolts.
    • Tighten to 62 Nm (46 lb-ft).

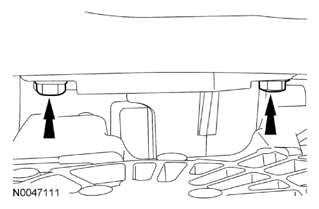

      Fig 2: Locating Transaxle Insulator-To-Frame Bolts (Lower Side)
      G08023376Courtesy of FORD MOTOR CO.
  4. Position the LH front structure-to-subframe splash shield in place and install the 6 pin-type retainers.

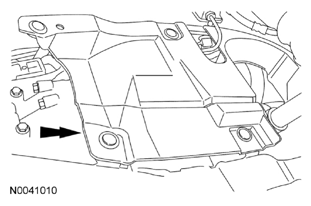

    Fig 3: Locating LH Front Structure-To-Subframe Splash Shield
    G08023377Courtesy of FORD MOTOR CO.
  5. Position the LH splash shield in place and install the 4 screws.
    Fig 4: Locating LH Fender Splash Shield Screws
    G08023378Courtesy of FORD MOTOR CO.
  6. Position the BJB and bracket in place and install the 2 bolts and the nut.
    • Tighten to 10 Nm (89 lb-in).

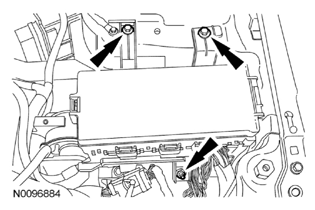

      Fig 5: Locating BJB Bolts And Nut
      G08023379Courtesy of FORD MOTOR CO.
  7. Install the electrical connector bracket on the BJB.

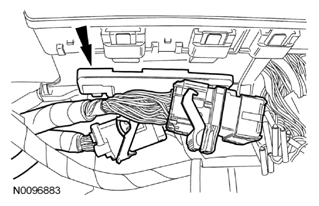

    Fig 6: Locating Battery Junction Box Electrical Connector Bracket
    G08023380Courtesy of FORD MOTOR CO.
  8. Connect the wiring harness retainer on the LH shock tower.

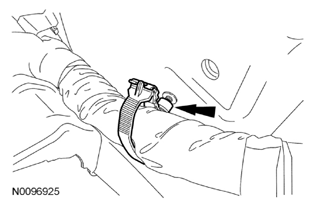

    Fig 7: Locating LH Shock Tower Wiring Harness Retainer
    G08023381Courtesy of FORD MOTOR CO.
  9. Position the wiring harness in place and install the retainer on the transaxle support insulator.

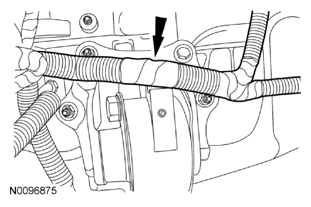

    Fig 8: Locating Transaxle Support Insulator
    G08023382Courtesy of FORD MOTOR CO.
  10. Install the through bolt.
    • Tighten to 150 Nm (111 lb-ft).

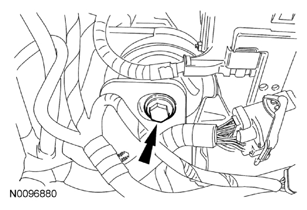

      Fig 9: Locating Transaxle Support Insulator Through Bolt
      G08023383Courtesy of FORD MOTOR CO.
  11. Remove the Engine Support Bar.
    Fig 10: Identifying Engine Support Bar
    G08023384Courtesy of FORD MOTOR CO.
  12. Remove the Engine Lifting Bracket and the Universal Adapter Bracket "L" hook from the from the LH side of the engine.

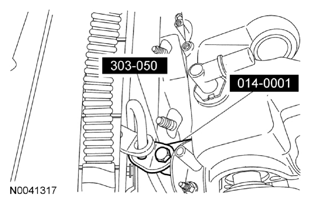

    Fig 11: Identifying Engine Lifting Bracket And Universal Adapter Bracket L Hook
    G08023385Courtesy of FORD MOTOR CO.
  13. Install the cooling fan motor and shroud. For additional information, refer to ENGINE COOLING .
  14. Install the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  15. Install the ACL and the outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING - 3.0L (4V) .
