Transaxle Support Insulator - 2.5L: Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the transaxle support insulator frame bolts using a wire brush and apply new threadlock to the threads.
  2. Position the transaxle support insulator in place and install the upper 2 transaxle support insulator bolts.
    • Tighten to 62 Nm (46 lb-ft).

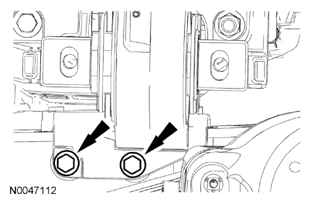

      Fig 1: Locating Transaxle Support Insulator Bolts
      G08023398Courtesy of FORD MOTOR CO.
  3. Install the lower 2 transaxle support insulator bolts.
    • Tighten to 62 Nm (46 lb-ft).

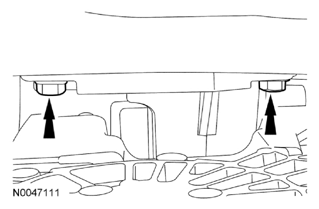

      Fig 2: Locating Transaxle Insulator-To-Frame Bolts (Lower Side)
      G08023399Courtesy of FORD MOTOR CO.
  4. Position the LH front structure-to-subframe splash shield in place and install the 6 pin-type retainers.

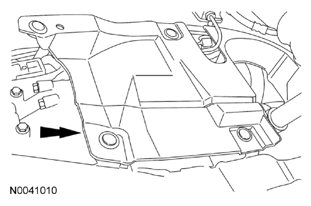

    Fig 3: Locating LH Front Structure-To-Subframe Splash Shield
    G08023400Courtesy of FORD MOTOR CO.
  5. Position the LH splash shield in place and install the 4 screws.
    Fig 4: Locating LH Fender Splash Shield Screws
    G08023401Courtesy of FORD MOTOR CO.
  6. Position the BJB and bracket in place and install the 2 bolts and the nut.
    • Tighten to 10 Nm (89 lb-in).

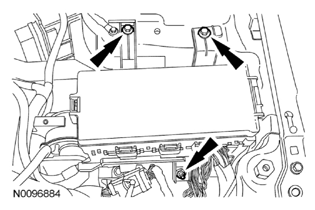

      Fig 5: Locating BJB Bolts And Nut
      G08023402Courtesy of FORD MOTOR CO.
  7. Install the electrical connector bracket on the BJB.

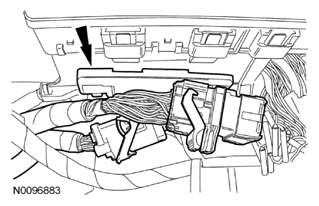

    Fig 6: Locating Battery Junction Box Electrical Connector Bracket
    G08023403Courtesy of FORD MOTOR CO.
  8. Connect the wiring harness retainer on the LH shock tower.

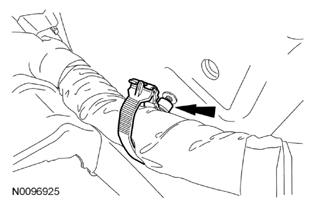

    Fig 7: Locating LH Shock Tower Wiring Harness Retainer
    G08023404Courtesy of FORD MOTOR CO.
  9. Position the wiring harness in place and install the retainer on the transaxle support insulator.

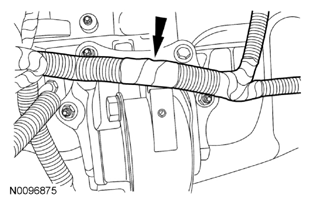

    Fig 8: Locating Transaxle Support Insulator
    G08023405Courtesy of FORD MOTOR CO.
  10. Install the through bolt.
    • Tighten to 150 Nm (111 lb-ft).

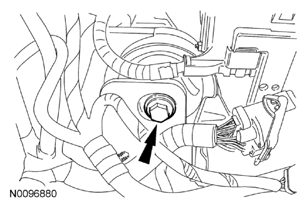

      Fig 9: Locating Transaxle Support Insulator Through Bolt
      G08023406Courtesy of FORD MOTOR CO.
  11. Remove the Engine Support Bar.

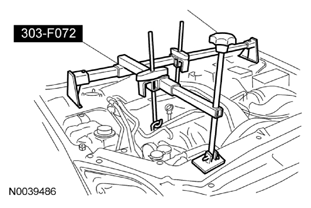

    Fig 10: Supporting Engine Using Engine Support Bar
    G08023407Courtesy of FORD MOTOR CO.
  12. Install the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  13. Install the ACL and the outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING - 2.5L .
