Transaxle Filler Tube: Removal

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove the transaxle vent hose from the transaxle filler tube.

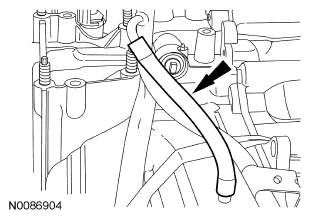

    Fig 1: Locating Transaxle Vent Hose
    G06096979Courtesy of FORD MOTOR CO.

    Vehicles equipped with a 3.0L engine

  2. Disconnect the wiring harness retainer from the transmission fluid filler tube.
    Fig 2: Locating Transmission Fluid Filler Tube Wiring Harness Retainer
    G06263542Courtesy of FORD MOTOR CO.

    All vehicles

  3. Remove the transaxle filler tube nut.
    • To install, tighten to 11 Nm (97 lb-in).
      Fig 3: Locating Transmission Fluid Filler Tube Nut
      G06096982Courtesy of FORD MOTOR CO.
  4. Pull and rotate the transaxle filler tube clockwise and remove the transaxle filler tube.
    Fig 4: Rotating Transmission Fluid Filler Tube
    G06096983Courtesy of FORD MOTOR CO.
