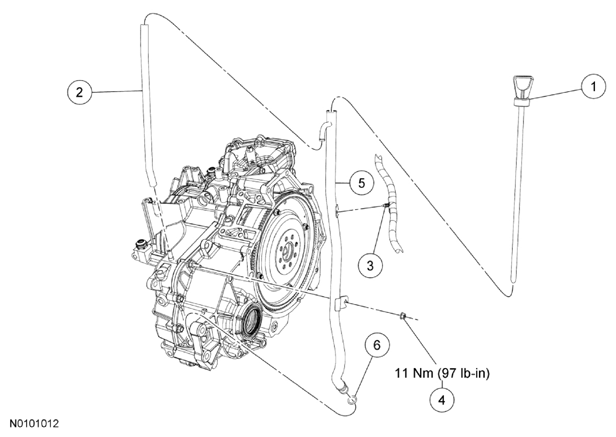

Transaxle Filler Tube: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
7A020 |
Transmission fluid level indicator |
| 2 |
- |
Transaxle vent tube (part of 7A228) |
| 3 |
13A506 |
Wiring harness retainer |
| 4 |
N805320 |
Transaxle filler tube nut |
| 5 |
7A228 |
Transaxle filler tube |
| 6 |
- |
Transaxle filler tube O-ring |
