Transaxle Case Bushing: Removal

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front LH halfshaft seal. For additional information, refer to HALFSHAFT SEAL - LH .

NOTE: Leave the drain plug out after the transmission fluid drains. The drain plug will need to remain out to clean any debris from the damaged or worn bushing.

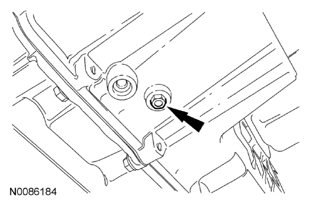

Fig 1: Locating Transmission Fluid Drain Plug

Courtesy of FORD MOTOR CO.

Remove the drain plug and drain the transmission fluid.
Install the Step Plate in the differential carrier.

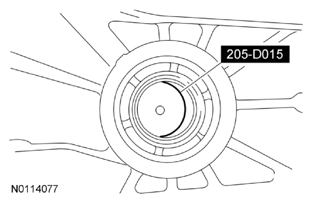

Fig 2: Identifying Step Plate On Differential Carrier
Courtesy of FORD MOTOR CO.
Using the Transmission Extension Housing Bushing Remover remove the LH halfshaft bushing.

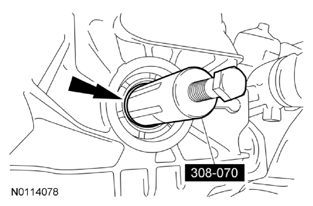

Fig 3: Removing LH Halfshaft Bushing Using Transmission Extension Housing Bushing Remover
Courtesy of FORD MOTOR CO.
Remove the Step Plate from the differential carrier.

Fig 4: Identifying Step Plate On Differential Carrier
Courtesy of FORD MOTOR CO.
