Transaxle Case Bushing: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Handle 205-153 (T80T-4000-W) |
|
| Installer, Seal 307-626 |
|
| Step Plate 205-D015 (D80L-630-4) or equivalent |
|
| Remover, Transmission Extension Housing Bushing 308-070 (T77L-7697-E) |
|
| Installer, Bushing 307-664 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
MERCON® LV |

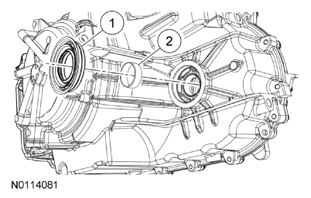

| Item | Part Number | Description |
|---|---|---|
| 1 | 1177 | LH halfshaft seal |
| 2 | 7025 | LH halfshaft bushing |
