Halfshaft Seal - RH, Front Wheel Drive (FWD): Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Install a new halfshaft seal on the Seal Installer and Handle.

Fig 1: Locating Halfshaft Seal On Seal Installer And Handle
Courtesy of FORD MOTOR CO.
Using the Seal Installer and Handle, install the RH halfshaft seal.

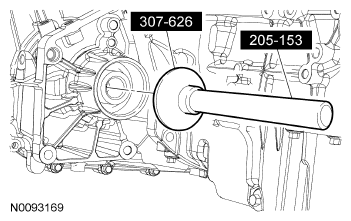

Fig 2: Locating RH Halfshaft Seal On Seal Installer And Handle
Courtesy of FORD MOTOR CO.
Install the front RH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
Fill the transaxle with clean transmission fluid.

Fig 3: Locating Transmission Fluid Level Indicator
Courtesy of FORD MOTOR CO.
Start the engine and move the range selector lever into each gear position.
Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
