Halfshaft Seal - RH, All Wheel Drive (AWD): Installation

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Install a new halfshaft seal on the Halfshaft Oil Seal Installer.

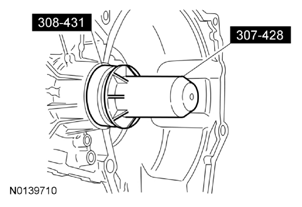

Fig 1: Identifying Halfshaft Seal On Halfshaft Oil Seal Installer
Courtesy of FORD MOTOR CO.
Using the RH Halfshaft Oil Seal Installers, install the RH halfshaft seal onto the transaxle case.

Fig 2: Installing RH Halfshaft Seal Onto Transaxle Case Using RH Halfshaft Oil Seal Installers
Courtesy of FORD MOTOR CO.
Install the PTU. For additional information, refer to TRANSFER CASE - POWER TRANSFER UNIT (PTU) .
Fill the transaxle with clean transmission fluid.

Fig 3: Locating Transmission Fluid Level Indicator
Courtesy of FORD MOTOR CO.
Start the engine and move the range selector lever into each gear position.
Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
