Final Drive Carrier and Differential Assembly: Disassembly

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, drive the roll pin out of the differential. Discard the roll pin.

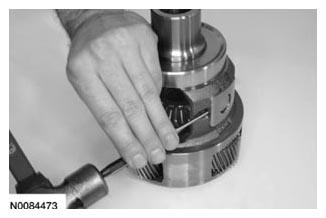

    Fig 1: Removing Roll Pin Out Of Differential
    G08023606Courtesy of FORD MOTOR CO.
  2. Remove the differential pin.

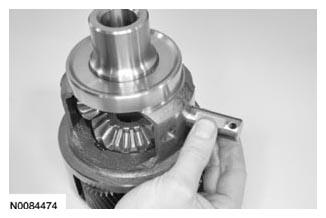

    Fig 2: Removing Differential Pin
    G08023607Courtesy of FORD MOTOR CO.
    3. NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
  3. Rotate the side gears along with the spider gears and remove the side gears and the spider gears.
    1. Side gear
    2. Spider gear

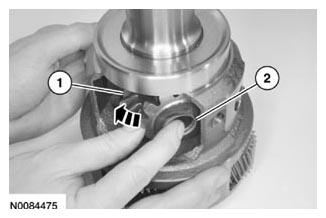

      Fig 3: Rotating Side Gears Along With Spider Gears
      G08023608Courtesy of FORD MOTOR CO.
  4. Remove the washers from the side and spider gears, but keep the washers with the gear that it was originally assembled with.

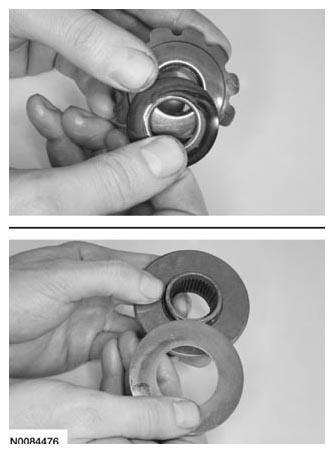

    Fig 4: Removing Washers From Side And Spider Gears
    G08023609Courtesy of FORD MOTOR CO.
