Clutch Support Tower: Disassembly

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, remove and discard the 4 Teflon® seals.

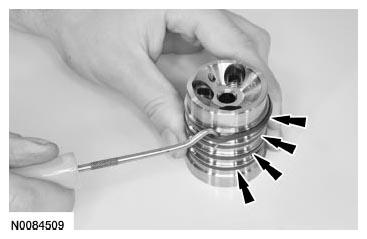

    Fig 1: Removing Teflon® Seals
    G06097460Courtesy of FORD MOTOR CO.
  2. Clean and inspect the clutch support tower for damage. Install a new clutch support tower if damaged.

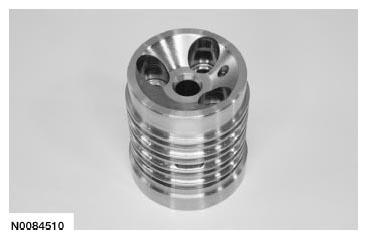

    Fig 2: Identifying Clutch Support Tower
    G06097461Courtesy of FORD MOTOR CO.
