Clutch Support Tower: Assembly

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Input Shaft Support Seal Installer 307-578/3 on the clutch support tower and adjust the Input Shaft Support Seal Installer to align the bottom edge of the tool with the top edge of the bottom Teflon® seal groove.

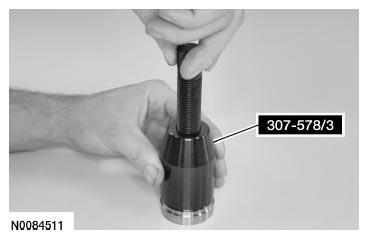

    Fig 1: Installing Input Shaft Support Seal Installer 307-578/3 On Clutch Support Tower
    G06097462Courtesy of FORD MOTOR CO.
  2. Install a new Teflon® seal on the Input Shaft Support Seal Installer 307-578/3.

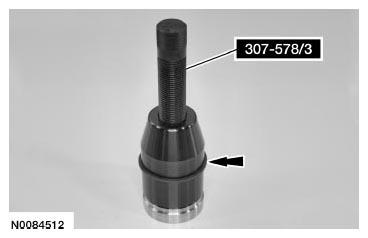

    Fig 2: Installing Teflon® Seal On Input Shaft Support Seal Installer 307-578/3
    G06097463Courtesy of FORD MOTOR CO.
  3. Install the Input Shaft Support Seal Installer 307-578/2 over 307-578/3. Using the Input Shaft Support Seal Installer 307-578/2, slide the Teflon® seal over the clutch support tower and into the groove.

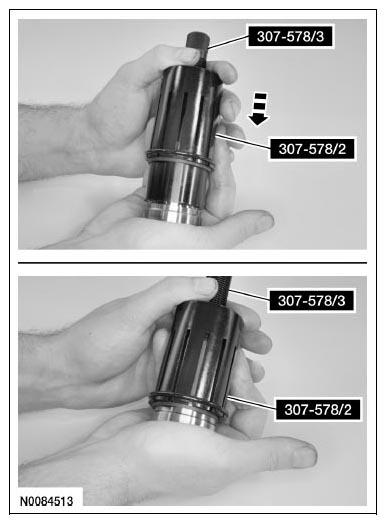

    Fig 3: Sliding Teflon® Seal Over Clutch Support Tower
    G06097464Courtesy of FORD MOTOR CO.
  4. Remove the Input Shaft Support Seal Installer 307-578/2 and 307-578/3.
    • Repeat Steps  1 through  4 for the other 3 Teflon® seals.

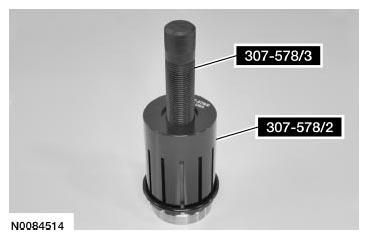

      Fig 4: Identifying Input Shaft Support Seal Installer 307-578/2 And 307-578/3
      G06097465Courtesy of FORD MOTOR CO.
  5. Install the Input Shaft Support Seal Installer 307-578/1 on the clutch support tower to size the 4 Teflon® seals.

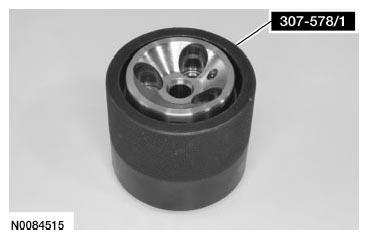

    Fig 5: Identifying Input Shaft Support Seal Installer 307-578/1
    G06097466Courtesy of FORD MOTOR CO.
