Output Shaft Speed (OSS) Sensor

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

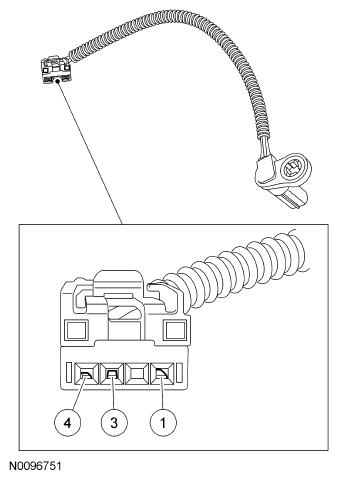

Fig 1: Identifying Output Shaft Speed Sensor Connector Pins
G06096941Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Output Shaft Speed (OSS) sensor ground
3 OSS signal
4 OSS sensor power
