Park Position: Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

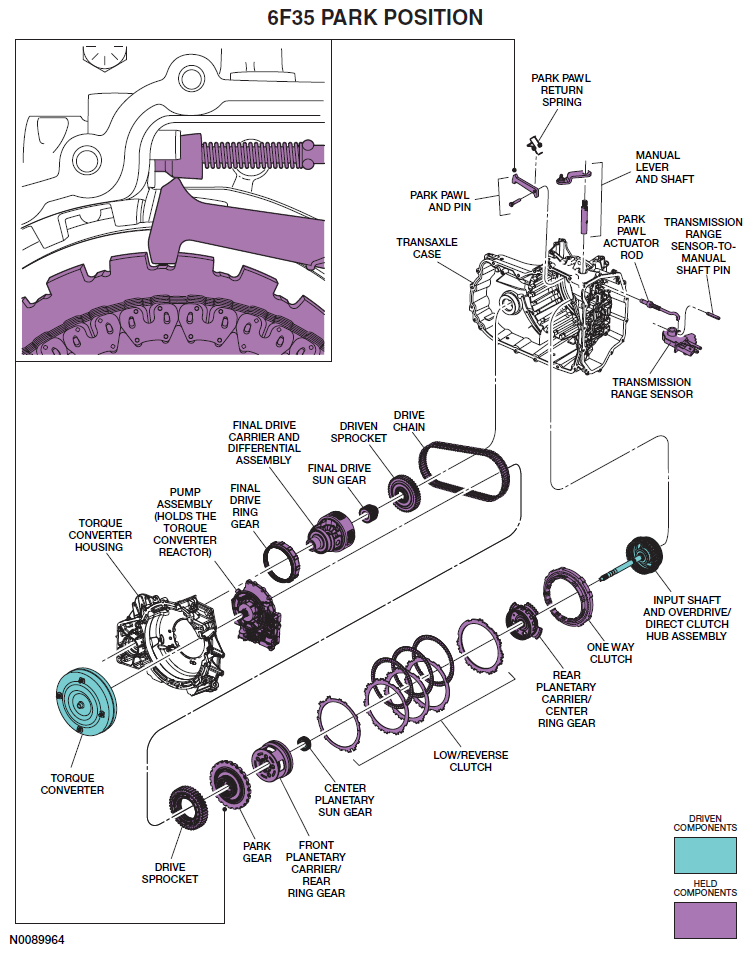

Fig 1: Exploded View Of 6F35 Park Position (Transaxle)
G06096891Courtesy of FORD MOTOR CO.
