Manual LOW Position and 1st Gear Below 8 km/h (5 mph) Solenoid Operation Chart: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

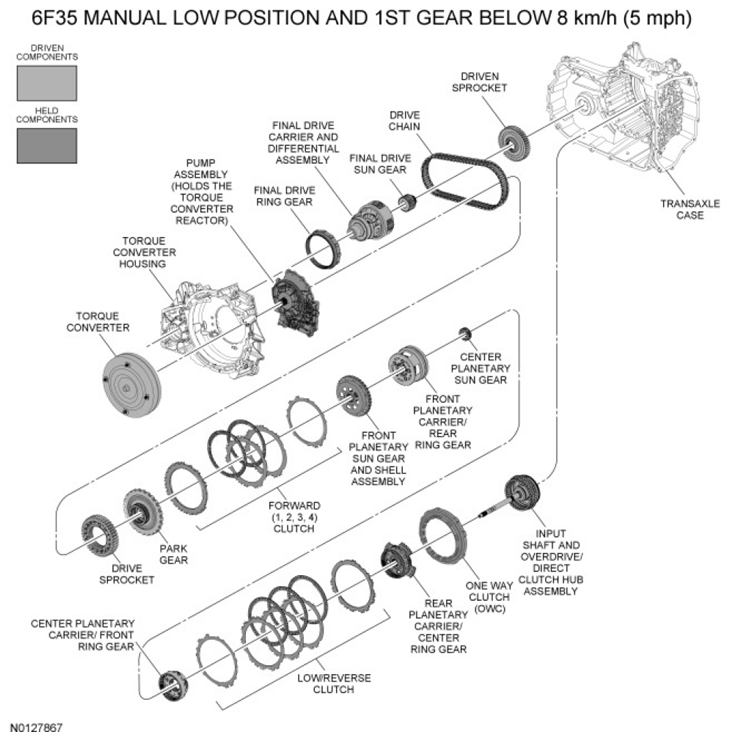

Fig 1: Exploded View Of Transaxle (6F35 Manual Low Position And 1st Gear Below 8 km/h (5 mph) Solenoid)
NOTE:
The transaxle operates differently in first gear above and below 8 km/h (5 mph). For transaxle operation above 8 km/h (5 mph), refer to 1ST GEAR ABOVE 8 KM/H (5 MPH) .
