4th Gear: Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

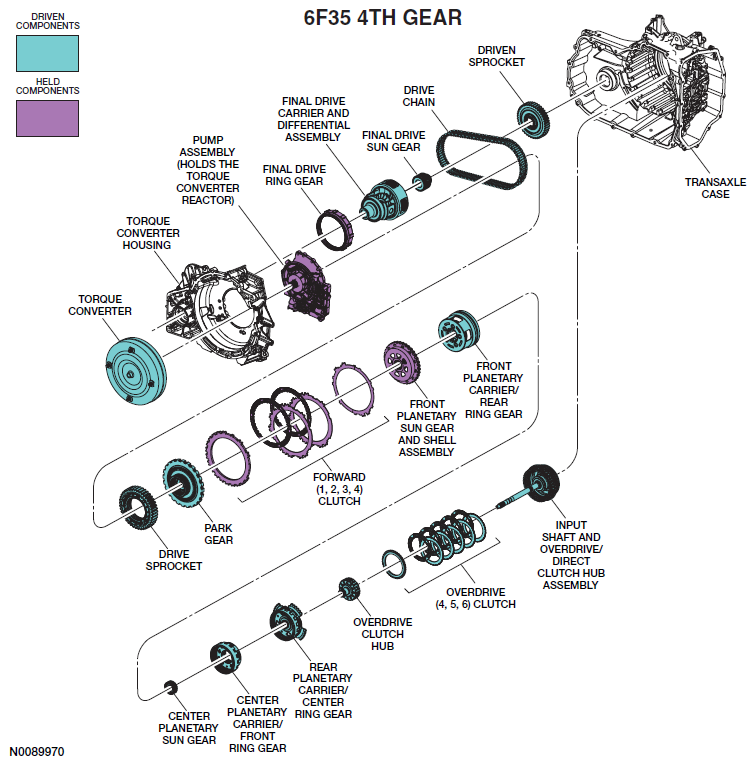

Fig 1: Exploded View Of Transaxle (6F35 4th Gear)
G06096909Courtesy of FORD MOTOR CO.
