Torque Converter Internal Component Exploded View

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

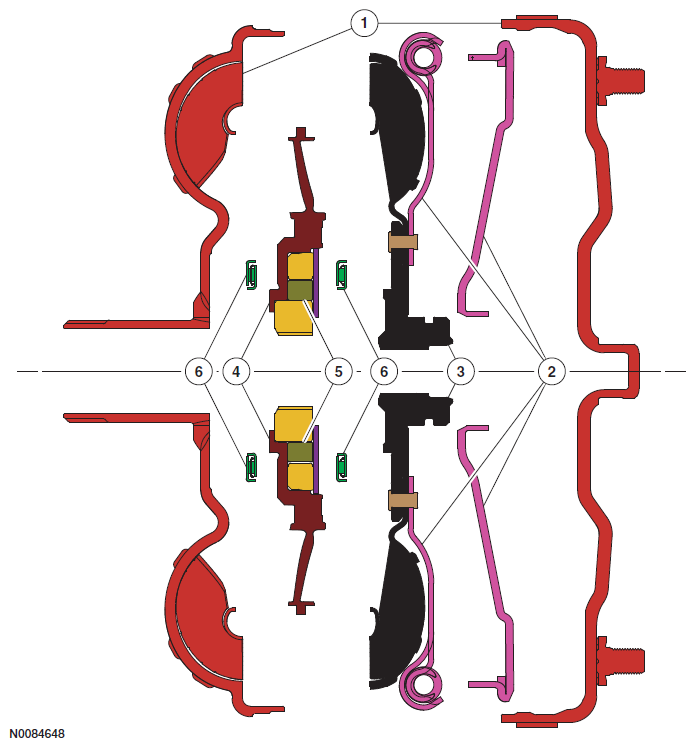

Fig 1: Exploded View Of Torque Converter Internal Component
G06096818Courtesy of FORD MOTOR CO.
Item Description
1 Impeller and cover assembly
2 Torque Converter Clutch (TCC) and damper assembly
3 Turbine
4 Reactor
5 One-Way Clutch (OWC)
6 Thrust bearings
