Low One-Way Clutch (OWC) Exploded View

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

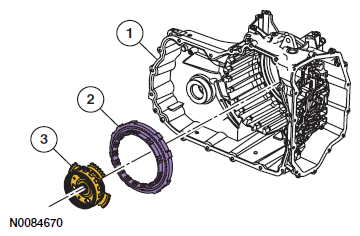

Fig 1: Identifying Transaxle Case, Low One-Way Clutch And Rear Planetary Carrier
G06096840Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7005 Transaxle case
2 7A089 Low One-Way Clutch (OWC)
3 7D491 Rear planetary carrier
