Front Planetary Carrier Hub Exploded View

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

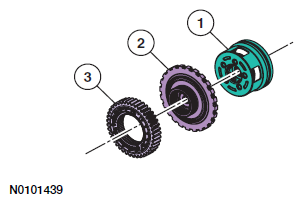

Fig 1: Exploded View Of Front Planetary Carrier Hub
G06096824Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7D491 Front planetary carrier
2 7060 Front planetary carrier hub/park gear
3 7G132 Drive chain drive sprocket
