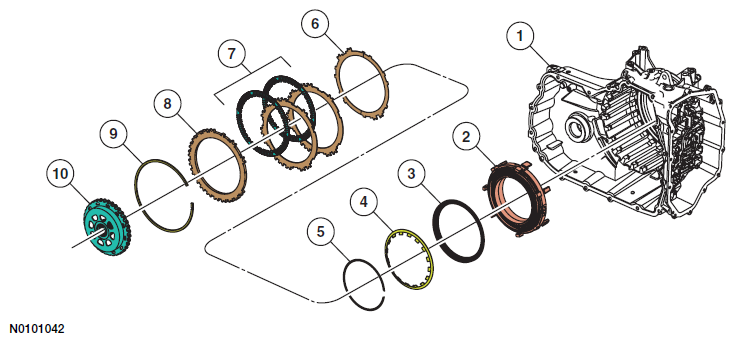

Forward (1, 2, 3, 4) Clutch Exploded View
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transaxle case |
| 2 | 7L328 | Center support |
| 3 | 7A262 | Forward clutch piston |
| 4 | 7B070 | Forward clutch piston return spring |
| 5 | 7H365 | Forward clutch piston return spring snap ring |
| 6 | 7B070 | Forward clutch wave spring |
| 7 | 7B164 | Forward (1, 2, 3, 4) clutch |
| 8 | 7B066 | Forward clutch pressure plate |
| 9 | 7D483 | Forward clutch snap ring |
| 10 | 7A019 | Front sun gear and shell assembly |
