Section 1613 (Engine Mechanical - 3.0L (4V)): Removal: Engine

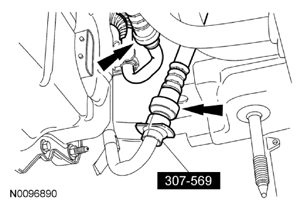

	Disconnect Tool, Transmission Cooler Line 307-569

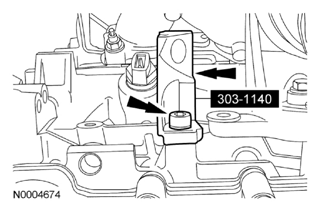

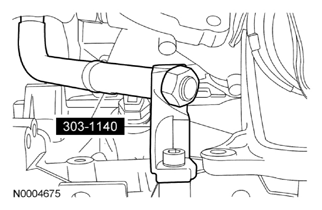

	Engine Lifting Bracket Set 303-1140
	2, 200# Floor Crane, Fold Away 300-OTC1819E or equivalent
	Lifting Bracket, Engine 303-050 (T70P-6000)
	Lifting Brackets, Engine 134-00243 or equivalent
	Powertrain Lift 300-OTC1585AE or equivalent

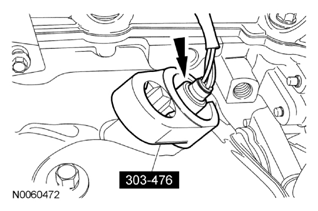

	Socket, Exhaust Gas Oxygen Sensor 303-476 (T94P-9472-A)
	Spreader Bar 303-D089 (D93P-6001-A3) or equivalent

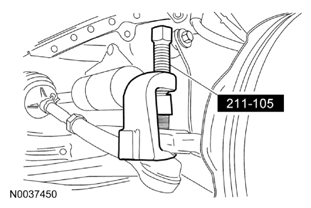

	Tie-Rod End Remover 211-105 (T85M-3395-A)
	Adjustable Grip Arm, 1735A 014-00001 or equivalent

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
3. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
4. Recover the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
5. Place the steering wheel in the straight-ahead position and the ignition key in the OFF position.
NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).
Fig 1: Locating Steering Wheel In Straight-Ahead Position Using Suitable Holding Device
Courtesy of FORD MOTOR CO.
6. Using a suitable holding device, hold the steering wheel in the straight-ahead position.
7. Remove the 2 nuts and the steering joint cover.

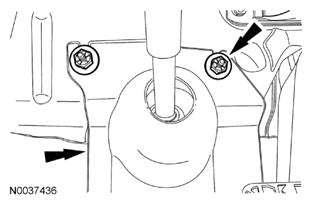

   Fig 2: Locating Steering Joint Cover And Nuts

   Courtesy of FORD MOTOR CO.

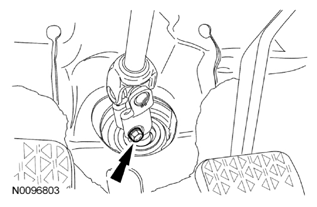

NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Fig 3: Locating Steering Column Shaft And Bolts
Courtesy of FORD MOTOR CO.
8. Remove the bolt and disconnect the steering column shaft from the steering gear.
9. Drain the cooling system. For additional information, refer to ENGINE COOLING .

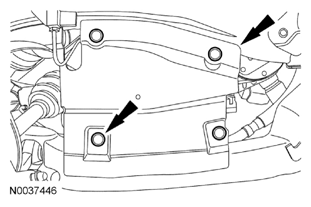

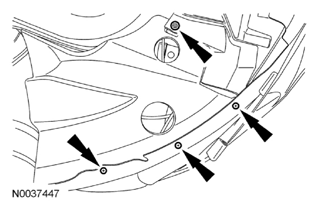

10. Remove the 4 screws and position the RH fender splash shield aside.
    Fig 4: Locating Fender Splash Shield Mounting Screws

    Courtesy of FORD MOTOR CO.
11. Remove the 6 pin-type retainers (4 shown in illustration) and the RH splash shield.
    Fig 5: Locating Pin-Type Retainers And RH Splash Shield

    Courtesy of FORD MOTOR CO.
12. Remove the bolt and the Electronic Power Assist Steering (EPAS) wiring ground wire from in the RH front wheel well.
    Fig 6: Locating Electronic Power Assist Steering (EPAS) System Wiring Harness Ground Bolt

    Courtesy of FORD MOTOR CO.

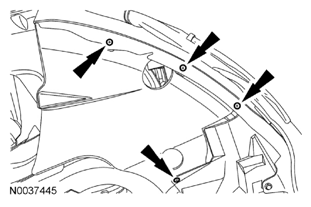

13. Remove the 4 screws and position the LH fender splash shield aside.
    Fig 7: Locating Fender Splash Shield Mounting Screws

    Courtesy of FORD MOTOR CO.
14. Remove the 6 pin-type retainers (4 shown in illustration) and the LH splash shield.
    Fig 8: Locating LH Splash Shield And Pin-Type Retainers

    Courtesy of FORD MOTOR CO.
15. Remove the exhaust flexible pipe. For additional information, refer to EXHAUST SYSTEM .

    All-Wheel Drive (AWD) vehicles

NOTE: Index-mark the driveshaft for installation.
Fig 9: Locating Driveshaft Bolts
Courtesy of FORD MOTOR CO.
16. Remove the 4 bolts (3 shown in illustration) and support the driveshaft with a length of mechanic's wire.

    All vehicles

NOTE: The steering gear-to-dash seal must be removed or it will be damaged when lowering the subframe.
Fig 10: Locating Steering Gear-To-Dash Seal And Clips
Courtesy of FORD MOTOR CO.
17. Release the 4 clips (2 shown in illustration) and slide the steering gear-to-dash seal off of the steering gear and into the passenger compartment.

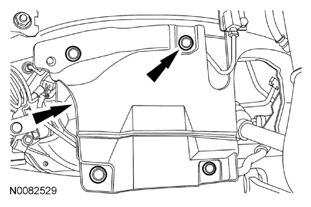

18. If equipped, remove the 2 bolts and the heat shield.
    Fig 11: Locating Heat Shield And Bolts

    Courtesy of FORD MOTOR CO.

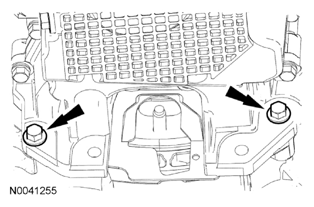

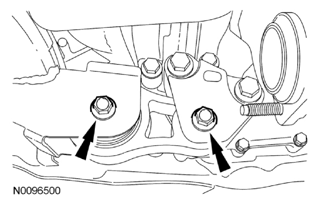

19. Remove the 2 bolts and the engine roll restrictor.
    Fig 12: Locating Engine Roll Restrictor And Bolts

    Courtesy of FORD MOTOR CO.
NOTE: RH shown in illustration, LH similar.
Fig 13: Locating Tie-Rod Ends Nuts And Cotter Pin
Courtesy of FORD MOTOR CO.
20. Remove the cotter pins and nuts from the tie-rod ends.
NOTE: LH shown in illustration, RH similar.
Fig 14: Separating Tie-Rod Ends From Steering Knuckles
Courtesy of FORD MOTOR CO.
21. Using the Tie-Rod End Remover, separate the tie-rod ends from the steering knuckles.
NOTE: RH shown in illustration, LH similar.

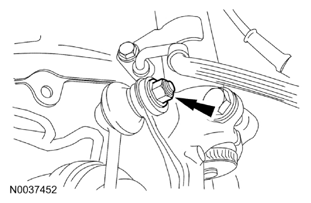

Fig 15: Locating Stabilizer Bar Link Nut
Courtesy of FORD MOTOR CO.
22. Remove the nuts and separate the stabilizer bar links from the struts.
23. Remove the LH halfshaft and the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .

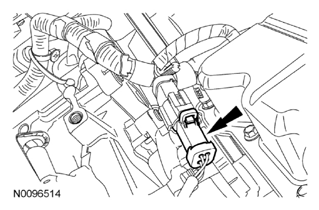

24. Disconnect the 2 EPAS electrical connectors near the front of the subframe.
    Fig 16: Locating Electronic Power Assist Steering Electrical Connector On Front Of Subframe

    Courtesy of FORD MOTOR CO.

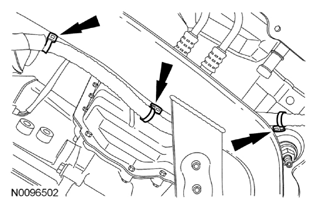

25. Detach the 3 wiring harness retainers from the LH front of the subframe.
    Fig 17: Locating Subframe Wiring Harness Retainers

    Courtesy of FORD MOTOR CO.

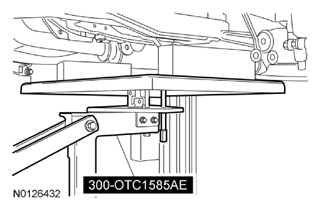

26. Position the Powertrain Lift under the subframe assembly.
    Fig 18: Identifying Powertrain Lift Under Subframe

    Courtesy of FORD MOTOR CO.
NOTE: LH shown in illustration, RH similar.
Fig 19: Locating Subframe Bracket-To-Body Bolts
Courtesy of FORD MOTOR CO.
27. Remove the subframe bracket-to-body bolts.
NOTE: LH shown in illustration, RH similar.
Fig 20: Locating Rear Subframe Nut And Subframe Bracket
Courtesy of FORD MOTOR CO.
28. Remove the subframe nuts and the subframe brackets.
NOTE: LH shown in illustration, RH similar.
Fig 21: Locating Front Subframe Nut
Courtesy of FORD MOTOR CO.
29. Remove the front subframe nuts.
30. Lower the subframe assembly from the vehicle.

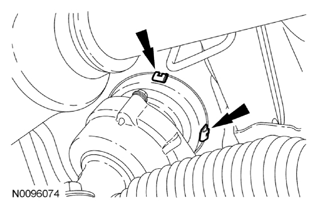

31. Remove the 2 transaxle fluid cooler tube secondary latches.
    Fig 22: Locating Transaxle Fluid Cooler Tube Secondary Latches

    Courtesy of FORD MOTOR CO.
32. Using the Transmission Cooler Line Disconnect Tool, disconnect the 2 transaxle fluid cooler tubes.
    Fig 23: Disconnecting Transmission Fluid Cooler Tubes

    Courtesy of FORD MOTOR CO.
33. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 26 Nm (19 lb-ft).
      Fig 24: Locating Engine Oil Drain Plug

      Courtesy of FORD MOTOR CO.

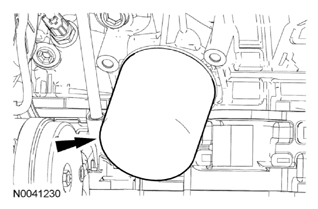

34. Remove and discard the engine oil filter.
    Fig 25: Locating Engine Oil Filter

    Courtesy of FORD MOTOR CO.
35. Remove the engine Air Cleaner (ACL) and ACL outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING - 3.0L (4V) .
36. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .

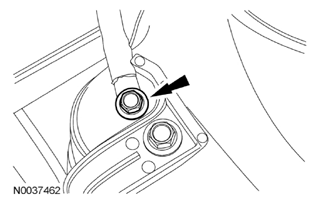

37. Remove the 2 nuts and disconnect the power feed wires from the battery terminal.
    Fig 26: Locating Power Feed Wires To Battery Terminal & Nuts

    Courtesy of FORD MOTOR CO.
38. Disconnect the engine wiring harness electrical connector.
    Fig 27: Locating Engine Wiring Harness Electrical Connector

    Courtesy of FORD MOTOR CO.

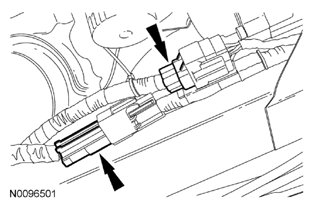

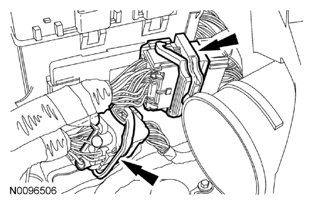

39. Disconnect the 2 engine wiring harness electrical connectors.
    Fig 28: Locating Engine Wiring Harness Electrical Connectors

    Courtesy of FORD MOTOR CO.

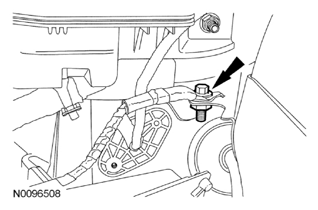

40. Remove the bolt and position aside the ground wire.
    Fig 29: Locating Ground Wire And Bolt

    Courtesy of FORD MOTOR CO.
41. Detach the 2 wiring harness retainers from the battery tray bracket and transaxle mount.

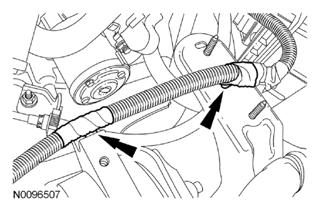

    Fig 30: Locating Wiring Harness Retainers Of Battery Tray Bracket And Transaxle Mount

    Courtesy of FORD MOTOR CO.
42. Remove the PCM ground bolt and position aside the ground wire.
    Fig 31: Locating PCM Ground Bolt

    Courtesy of FORD MOTOR CO.

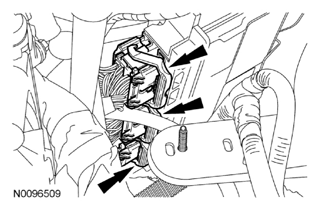

43. Disconnect the 3 PCM electrical connectors.
    Fig 32: Locating PCM Electrical Connectors

    Courtesy of FORD MOTOR CO.

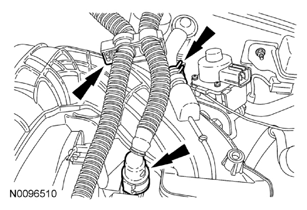

44. Disconnect the fuel supply tube from the fuel rail. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
45. Disconnect the EVAP tube-to-EVAP canister purge valve quick connect coupling and the brake booster vacuum tube from the upper intake manifold.
    • Detach the fuel tube and EVAP tube-to-EVAP canister purge valve tube retainer from the upper intake manifold.
      Fig 33: Locating EVAP Tube-To-EVAP Canister Purge Valve Quick Connect Coupling And Brake Booster Vacuum Tube

      Courtesy of FORD MOTOR CO.

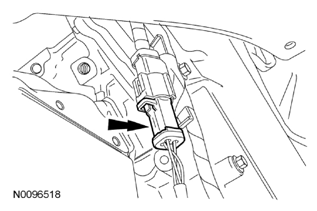

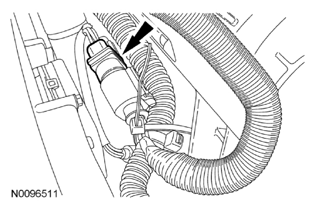

46. Disconnect the LH Heated Oxygen Sensor (HO2S) electrical connector.
    Fig 34: Locating LH Heated Oxygen Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.

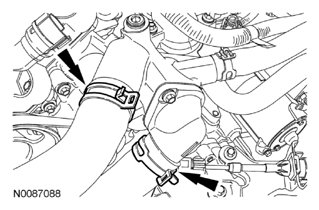

47. Disconnect the upper and lower radiator hoses.

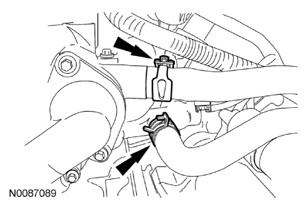

    Fig 35: Locating Upper And Lower Radiator Hoses

    Courtesy of FORD MOTOR CO.

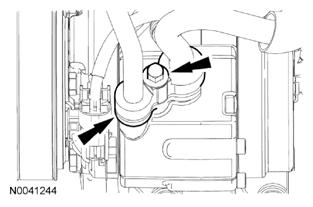

48. Disconnect the 2 heater hoses.
    Fig 36: Locating Heater Hoses Clamp

    Courtesy of FORD MOTOR CO.
49. Disconnect the gearshift cable from the transaxle.
    Fig 37: Locating Gearshift Cable

    Courtesy of FORD MOTOR CO.
50. Remove the 2 shift cable bracket bolts, and position the cable and bracket aside.
    Fig 38: Locating Shift Cable Bracket Bolts

    Courtesy of FORD MOTOR CO.

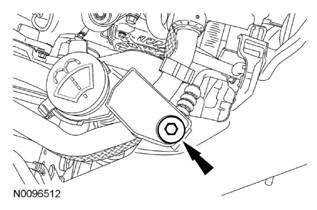

51. Remove the A/C tube/windshield washer bottle bracket bolt.
    Fig 39: Locating A/C Tube/Windshield Washer Bottle Bracket Bolt

    Courtesy of FORD MOTOR CO.

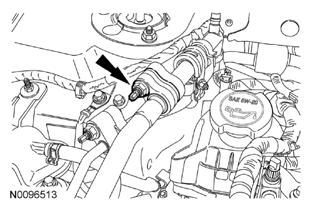

52. Remove the nut and disconnect the A/C tube.
    • Discard the gasket.
      Fig 40: Locating A/C Tube Nut

      Courtesy of FORD MOTOR CO.
53. Disconnect the LH Catalyst Monitor Sensor (CMS) electrical connector.
    Fig 41: Locating LH Catalyst Monitor Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.

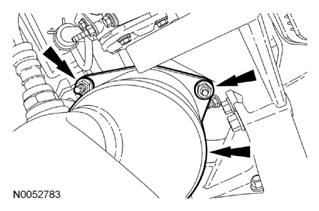

54. Remove the 4 bolts (3 shown in illustration) and the LH catalytic converter heat shield.

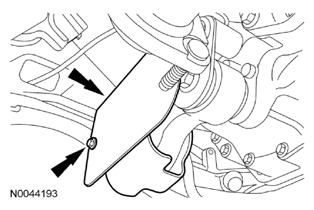

    Fig 42: Locating Bolts And LH Catalytic Converter Heat Shield

    Courtesy of FORD MOTOR CO.

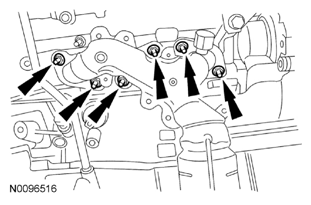

55. Remove the 6 nuts and the LH catalytic converter manifold.
    • Discard the 6 LH catalytic converter manifold nuts and gasket.
      Fig 43: Locating LH Catalytic Converter Manifold Nuts

      Courtesy of FORD MOTOR CO.
56. Clean and inspect the LH catalytic converter manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
57. Remove and discard the 6 LH catalytic converter manifold studs.
    Fig 44: Locating LH Catalytic Converter Manifold Studs

    Courtesy of FORD MOTOR CO.
58. Remove the bolt and separate the A/C manifold from the A/C compressor.
    • Discard the gasket.
      Fig 45: Locating A/C Manifold And Bolt

      Courtesy of FORD MOTOR CO.

    AWD vehicles

59. Disconnect the RH CMS electrical connector.
    Fig 46: Locating RH Catalyst Monitor Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
60. Disconnect the RH Heated Oxygen Sensor (HO2S) electrical connector.
    Fig 47: Locating RH Heated Oxygen Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
61. Using the Exhaust Gas Oxygen Sensor Socket, remove the RH HO2S.
    Fig 48: Locating RH HO2S

    Courtesy of FORD MOTOR CO.
62. Remove the 5 bolts and the RH exhaust heat shield.

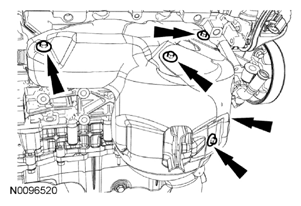

    Fig 49: Locating Bolts And RH Exhaust Heat Shield

    Courtesy of FORD MOTOR CO.
63. Remove the 3 nuts and the RH exhaust heat shield bracket (outboard half).
    Fig 50: Locating Nuts And RH Exhaust Heat Shield Bracket (Outboard Half)

    Courtesy of FORD MOTOR CO.
64. Remove the 2 bolts and the RH exhaust heat shield bracket (inboard half).
    Fig 51: Locating Bolts And RH Exhaust Heat Shield Bracket (Inboard Half)

    Courtesy of FORD MOTOR CO.

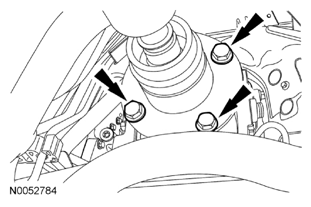

65. Remove the 3 nuts (2 shown in illustration) and the RH catalytic converter.
    • Discard the nuts and gasket.
      Fig 52: Locating Nuts And RH Catalytic Converter

      Courtesy of FORD MOTOR CO.
66. Remove the 5 bolts and the PTU support bracket.
    Fig 53: Locating Bolts And PTU Support Bracket

    Courtesy of FORD MOTOR CO.
67. Remove the 5 bolts and the PTU.
    Fig 54: Locating PTU Bolts

    Courtesy of FORD MOTOR CO.

    All vehicles

68. Remove the torque converter nut access plug.

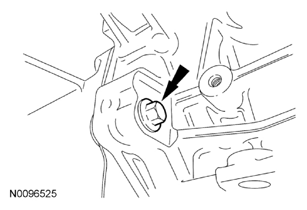

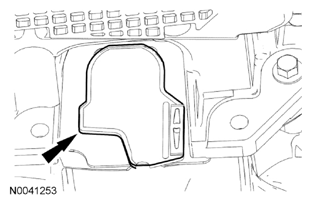

    Fig 55: Locating Torque Converter Nut Access Plug

    Courtesy of FORD MOTOR CO.
69. Remove the 4 torque converter nuts.
    Fig 56: Locating Torque Converter Nuts

    Courtesy of FORD MOTOR CO.

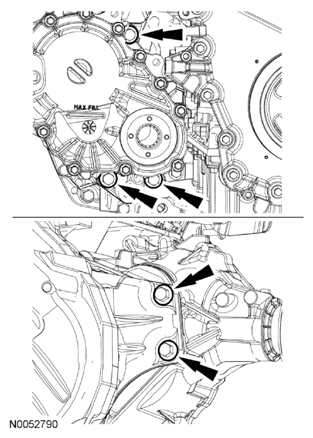

70. Remove the 2 oil pan-to-transaxle bolts.
    Fig 57: Locating Oil Pan-To-Transaxle Bolts

    Courtesy of FORD MOTOR CO.

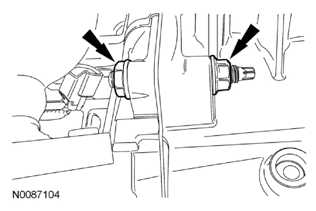

71. Remove the 2 nuts and the transaxle-to-engine stud.
    Fig 58: Locating Transaxle-To-Engine Stud And Nuts

    Courtesy of FORD MOTOR CO.
NOTE: Position a suitable block of wood under the transaxle.

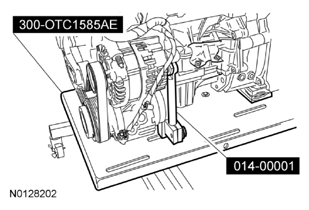

72. Install the Powertrain Lift and the Adjustable Grip Arm onto the engine.
    • Raise the engine and transaxle 25.4 mm (1 in) to neutralize the engine and transaxle mounts.
      Fig 59: Installing Adjustable Grip Arm And Powertrain Lift To Engine

      Courtesy of FORD MOTOR CO.
73. Remove the rear transaxle support through bolt.
    Fig 60: View Of Rear Transaxle Support And Through Bolt

    Courtesy of FORD MOTOR CO.

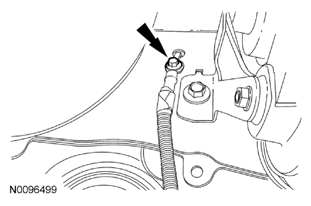

74. Remove the bolt and ground strap from the engine mount bracket.
    Fig 61: Locating Bolt And Ground Strap On Engine Mount Bracket

    Courtesy of FORD MOTOR CO.

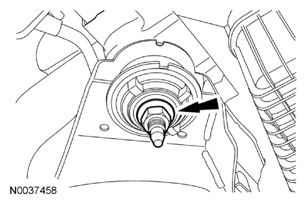

75. Remove the bolt and damper.

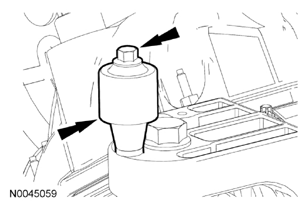

    Fig 62: Locating Damper And Bolt

    Courtesy of FORD MOTOR CO.

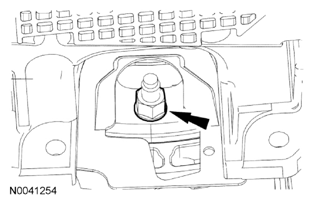

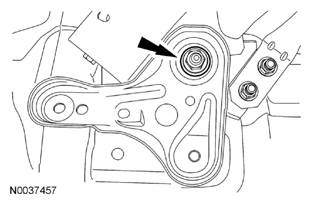

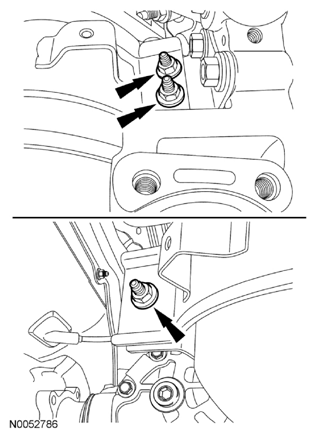

76. Remove the bolt, 3 nuts and the engine mount bracket.

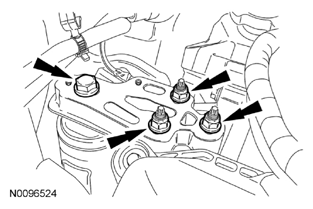

    Fig 63: Locating Engine Mount Bracket Bolt And Nuts

    Courtesy of FORD MOTOR CO.
77. Lower the engine and transaxle from the vehicle.
78. Remove the transaxle-to-engine bolt.
    Fig 64: View Of Transaxle-To-Engine Side Bolt

    Courtesy of FORD MOTOR CO.
79. Install the Adjustable Grip Arm and the Engine Lifting Bracket.
    Fig 65: Installing Adjustable Grip Arm And Engine Lifting Bracket

    Courtesy of FORD MOTOR CO.
80. Install the Engine Lifting Bracket.
    Fig 66: Identifying Engine Lifting Bracket

    Courtesy of FORD MOTOR CO.
NOTE: When installing the lower half of the lifting bracket it will be easier to loosely install the upper bolt first then install the lower bolt.
Fig 67: Identifying Lower Half Of Lifting Hook
Courtesy of FORD MOTOR CO.
81. Install the lower half of the Engine Lifting Bracket Set.
82. Install the upper half of the Engine Lifting Bracket Set.
    Fig 68: Identifying Upper Half Of Lifting Hook

    Courtesy of FORD MOTOR CO.
83. Using the Spreader Bar, Engine Lifting Brackets, Engine Lifting Bracket Set and a suitable engine crane, remove the engine and transaxle from the lift table.
    Fig 69: Identifying Engine And Crane

    Courtesy of FORD MOTOR CO.
84. Remove the nut and the starter wiring ground.
    Fig 70: Locating Starter Wiring Ground Nut

    Courtesy of FORD MOTOR CO.
85. Remove the 2 nuts and the starter wiring.
    Fig 71: Locating Starter Wiring Nuts

    Courtesy of FORD MOTOR CO.
86. Remove the 2 stud bolts and the starter.
    Fig 72: Locating Starter And Stud Bolts

    Courtesy of FORD MOTOR CO.
87. Detach the wiring harness retainer from the transmission indicator tube.
    Fig 73: Locating Transmission Fluid Filler Tube Wiring Harness Retainer

    Courtesy of FORD MOTOR CO.
88. Disconnect the 2 transmission electrical connectors and detach the wiring retainer from the stud bolt.
    Fig 74: Locating Transmission Electrical Connectors And Wiring Harness Retainer

    Courtesy of FORD MOTOR CO.
89. Remove the 4 remaining transaxle-to-engine bolts.
    Fig 75: View Of Transaxle-To-Engine Upper Bolts

    Courtesy of FORD MOTOR CO.
90. Using the Spreader Bar, Engine Lifting Brackets, Engine Lifting Bracket Set and the Heavy Duty Floor Crane, separate the engine and transaxle.
    Fig 76: Identifying Engine And Crane

    Courtesy of FORD MOTOR CO.
