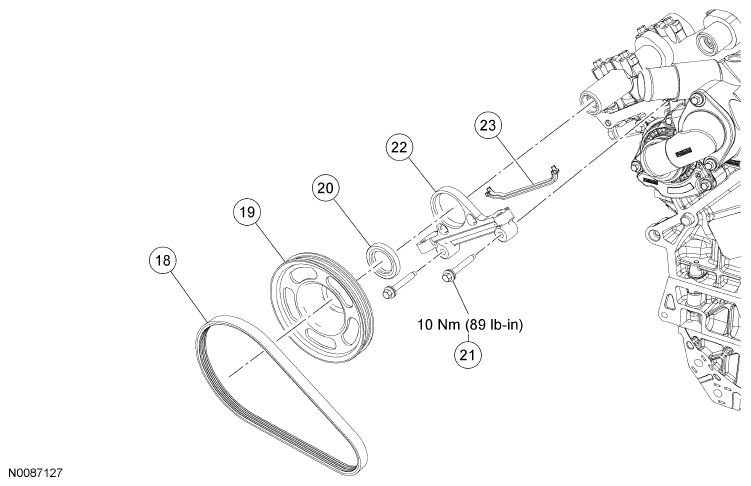

Coolant Pump Belt and Pulley
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 18 |
8K543 |
Coolant pump drive belt |
| 19 |
6A359 |
Coolant pump drive pulley |
| 20 |
- |
Camshaft oil seal |
| 21 |
W701242 |
Camshaft oil seal retainer bolt (2 required) |
| 22 |
6B293 |
Camshaft oil seal retainer |
| 23 |
6B295 |
Camshaft oil seal retainer gasket |
