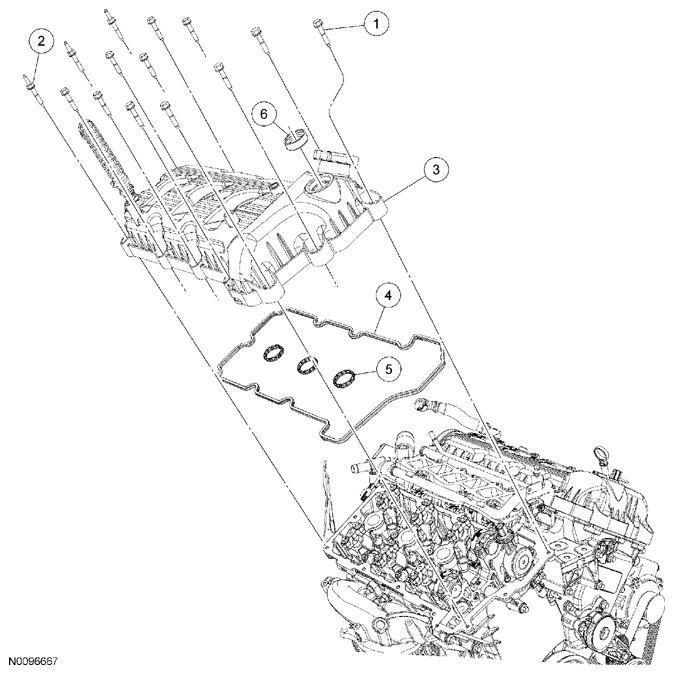

RH Valve Cover (View 2 of 2): Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6C519 |
Valve cover stud bolt (11 required) |
| 2 |
6C519 |
Valve cover bolt (3 required) |
| 3 |
6582 |
Valve cover |
| 4 |
6584 |
Valve cover gasket |
| 5 |
6C527 |
Valve cover spark plug gasket (3 required) |
| 6 |
6C535 |
Variable Camshaft Timing (VCT) valve cover seal |
