Upper Intake Manifold (View 2 of 2): Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

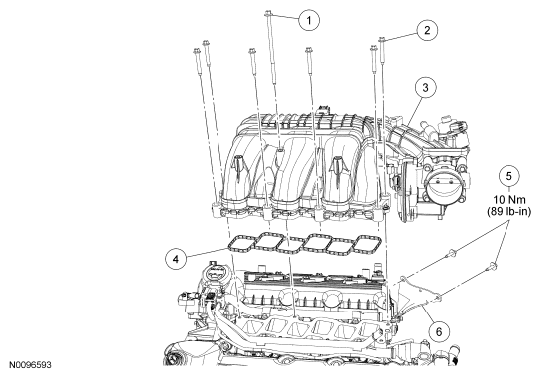

Fig 1: Upper Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
G06263313Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W713391 Upper intake manifold bolt
2 9Y450 Upper intake manifold bolt (6 required)
3 9424 Upper intake manifold
4 - Upper intake manifold gasket
5 W701775 Upper intake manifold support bracket bolts (2 required)
6 9J444 Upper intake manifold support bracket
