Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

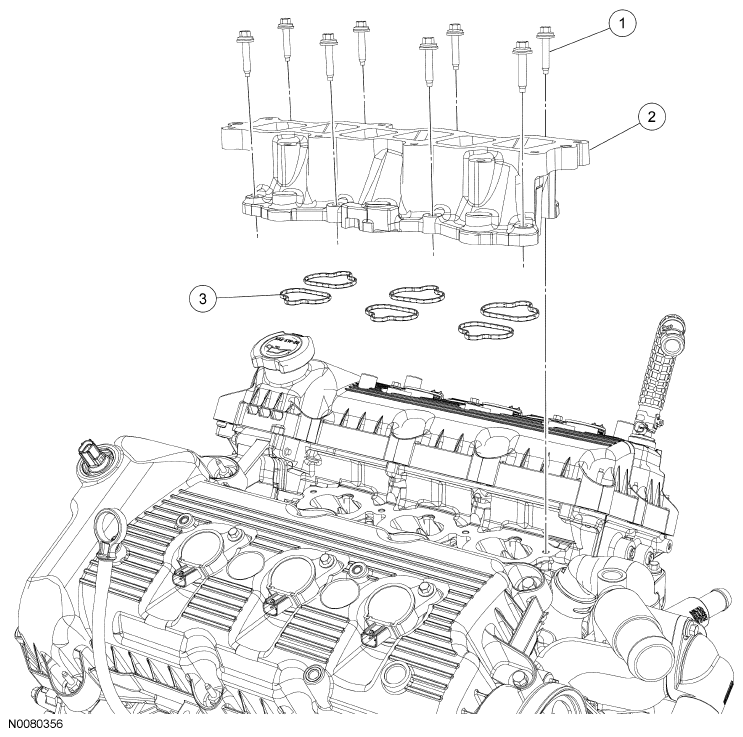

Fig 1: Identifying Lower Intake Manifold Bolts And Gasket
G06095488Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W503279 Lower intake manifold bolt (8 required)
2 9K461 Lower intake manifold
3 9439 Lower intake manifold gasket (6 required)
