Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

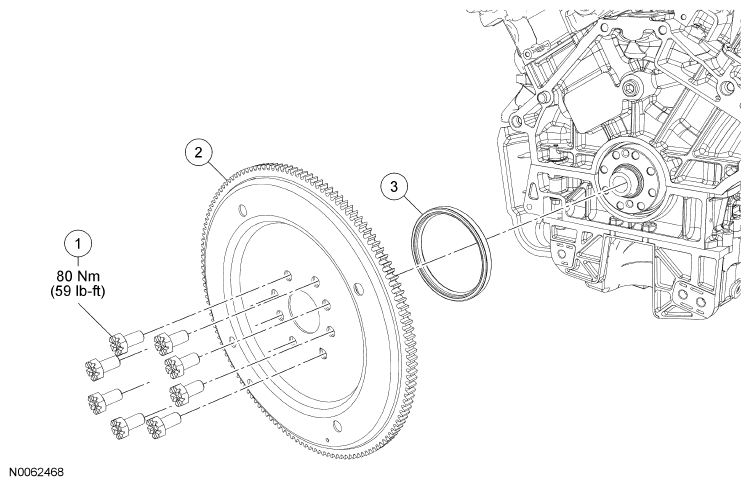

Fig 1: Exploded View Flexplate Or Flywheel, Bolts With Torque Specifications And Crankshaft Rear Seal
| Item | Part Number | Description |
|---|---|---|
| 1 | W701559 | Flexplate bolt (8 required) |
| 2 | 6375 | Flexplate |
| 3 | 6701 | Crankshaft rear oil seal |
- For additional information, refer to the appropriate procedures in this information.
