Exhaust Manifold - RH: Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Metal Surface Prep
ZC-31-A		 -

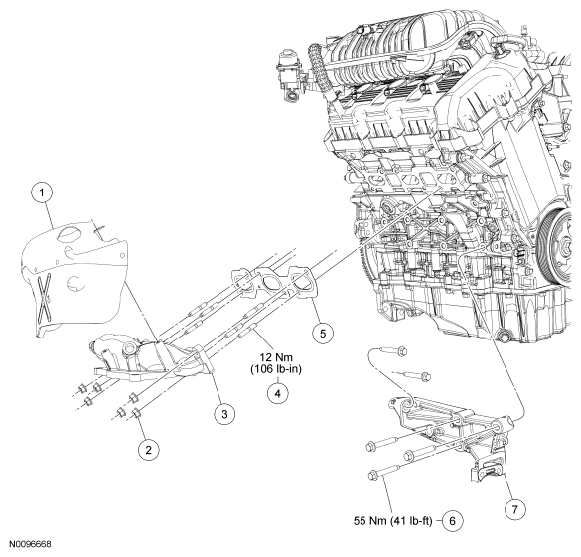

Fig 1: RH Exhaust Manifold Replacement Components With Torque Specifications
G06263448Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5E258 RH catalytic converter heat shield
2 W701706 RH exhaust manifold nut (6 required)
3 9430 RH exhaust manifold
4 W701732 RH exhaust manifold stud (6 required)
5 9448 RH exhaust manifold gasket
6 W500724 Power Transfer Unit (PTU) bracket bolt (5 required)
7 7A444 PTU bracket


MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Metal Surface Prep
ZC-31-A		 -
Fig 1: RH Exhaust Manifold Replacement Components With Torque Specifications
G06263448Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5E258 RH catalytic converter heat shield
2 W701706 RH exhaust manifold nut (6 required)
3 9430 RH exhaust manifold
4 W701732 RH exhaust manifold stud (6 required)
5 9448 RH exhaust manifold gasket
6 W500724 Power Transfer Unit (PTU) bracket bolt (5 required)
7 7A444 PTU bracket
