Engine Oil Pressure (EOP) Switch: Notes

WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Thread Sealant with PTFE TA-24	WSK-M2G350-A2

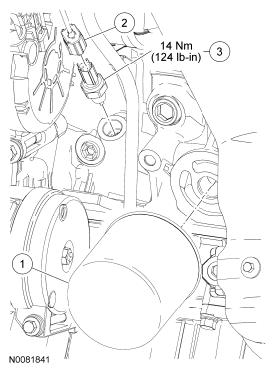

Fig 1: Engine Oil Pressure (EOP) Switch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6714	Engine oil filter
2	14A464	Engine Oil Pressure (EOP) switch electrical connector (part of 12B637)
3	9278	EOP
