Cylinder Head - RH: Notes
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

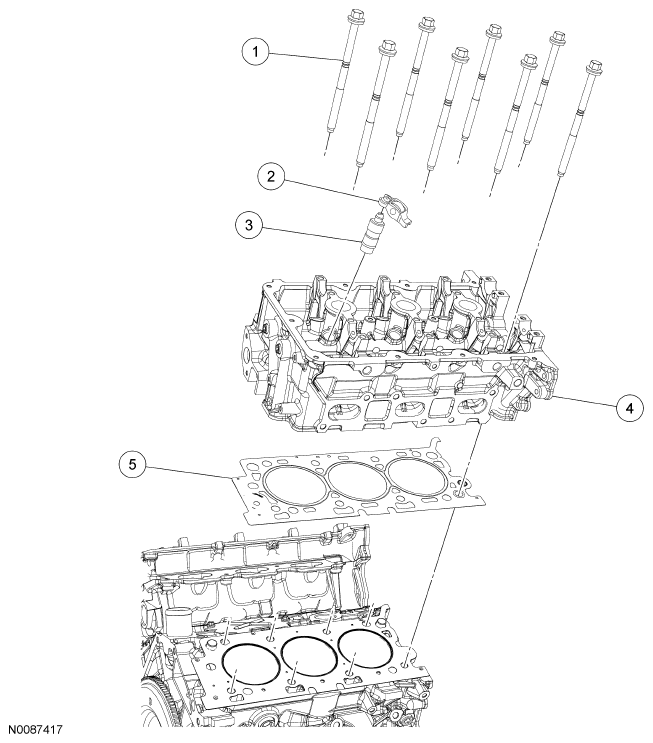

| Item | Part Number | Description |
|---|---|---|
| 1 | 6065 | Cylinder head bolt (8 required) |
| 2 | 6529 | Camshaft roller follower (12 required) |
| 3 | 6C501 | Hydraulic lash adjuster (12 required) |
| 4 | 6049 | Cylinder head |
| 5 | 6051 | Cylinder head gasket |
