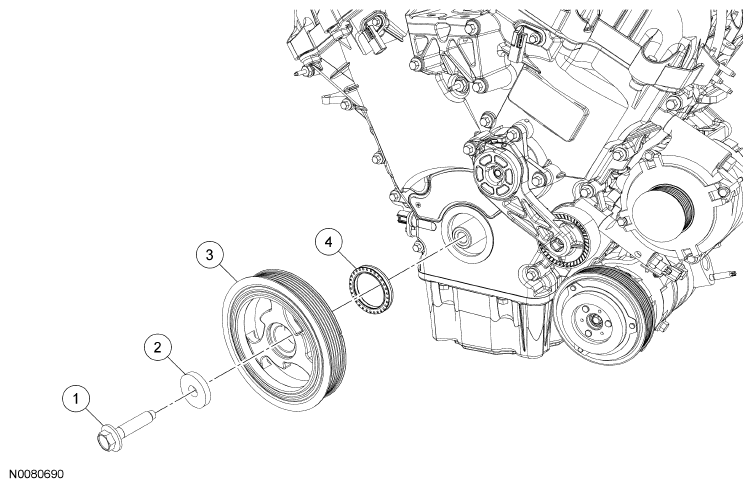

Crankshaft Pulley and Crankshaft Front Seal - Exploded View
WARNING: This page is about a different car, the 2012 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W701512 |
Crankshaft pulley bolt |
| 2 |
N806165 |
Washer |
| 3 |
6316 |
Crankshaft pulley |
| 4 |
6700 |
Crankshaft front seal |
- For additional information, refer to the appropriate procedures in this information.
